Parts List¶
This page catalogues the parts in the RACECAR-MN Full. To order these parts, visit the Ordering a Racecar page.
CAD¶
Laser Cut Patterns¶
Bottom Cut Pattern: BottomCutPattern.DXF or BottomCutPattern.SLDPRT
Top Cut Pattern: TopCutPattern.DXF or TopCutPattern.SLDPRT
Electronics¶
|

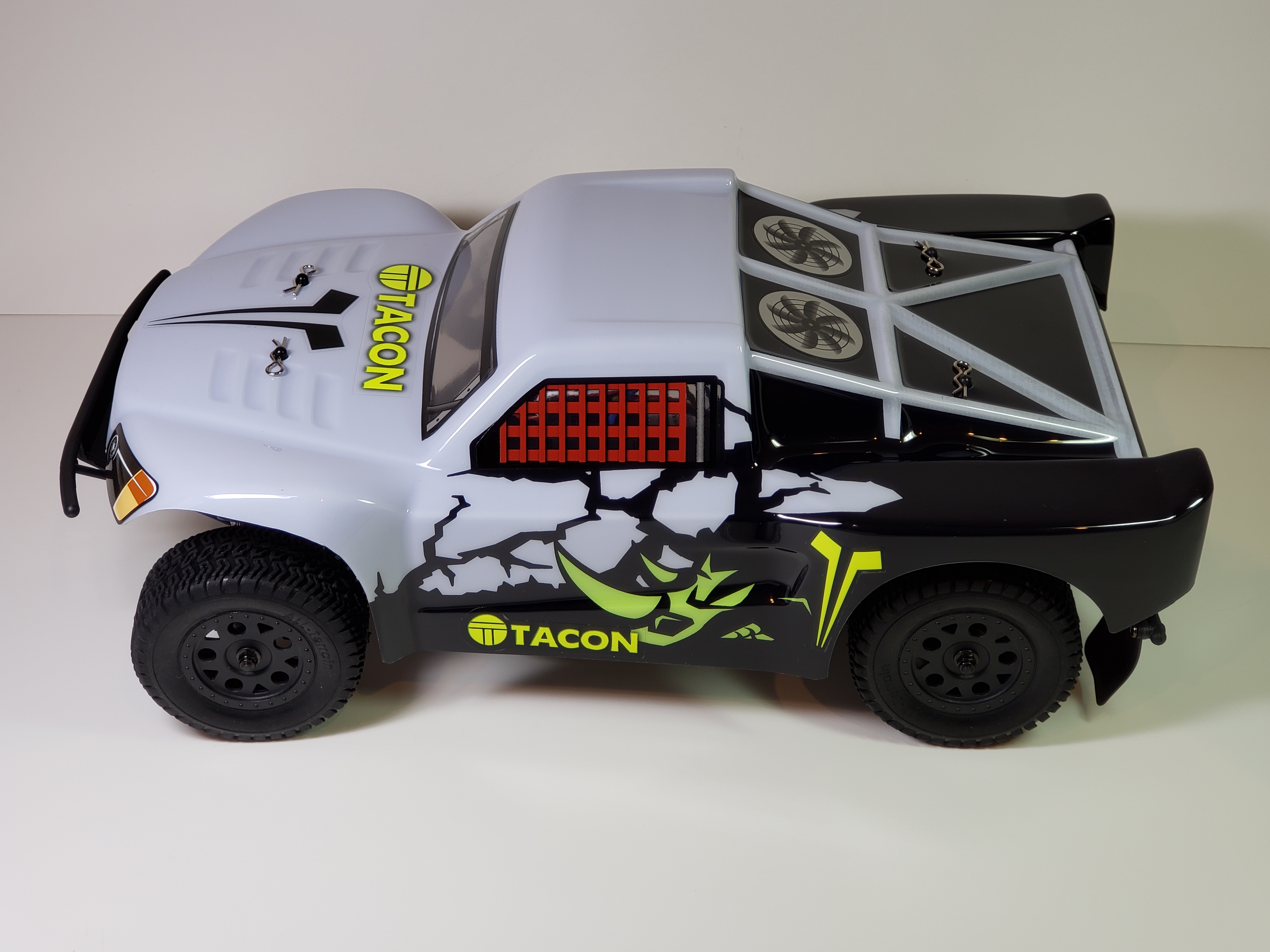

RC car
The RACECAR-MN chasis
|
|

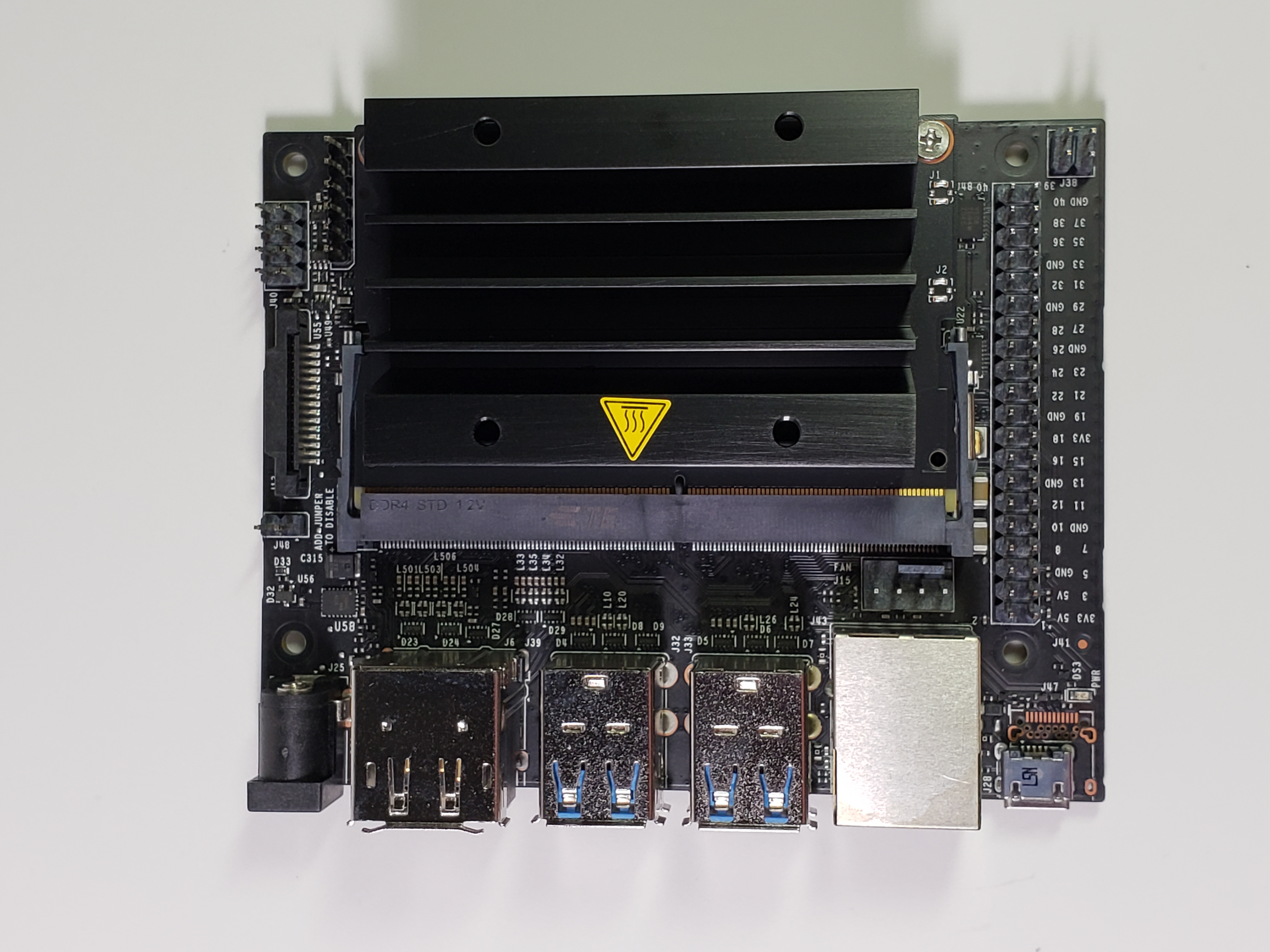

Jetson Nano
The main computer of the RACECAR-MN
|
|

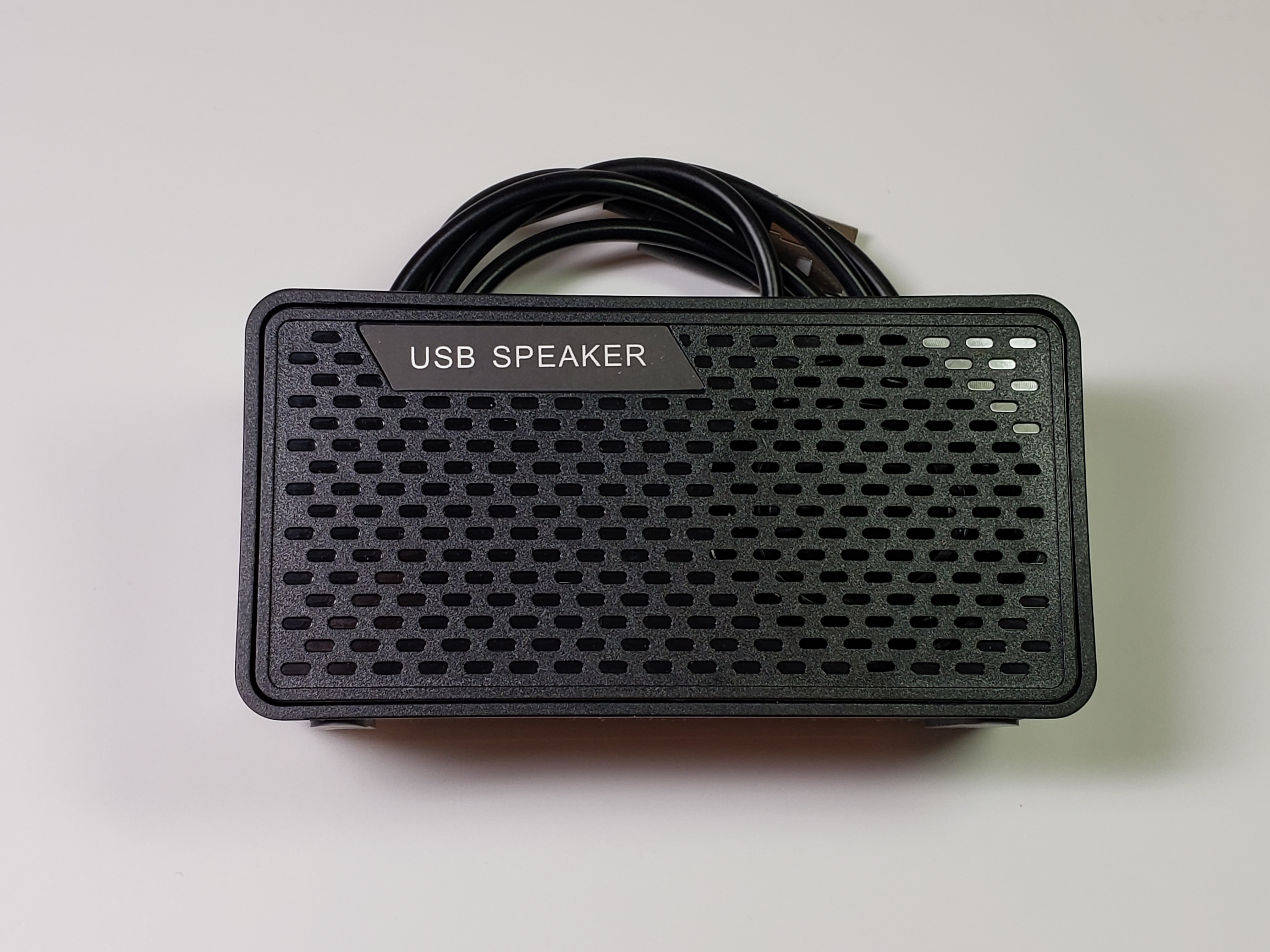

Speaker
Produces sound
|
|

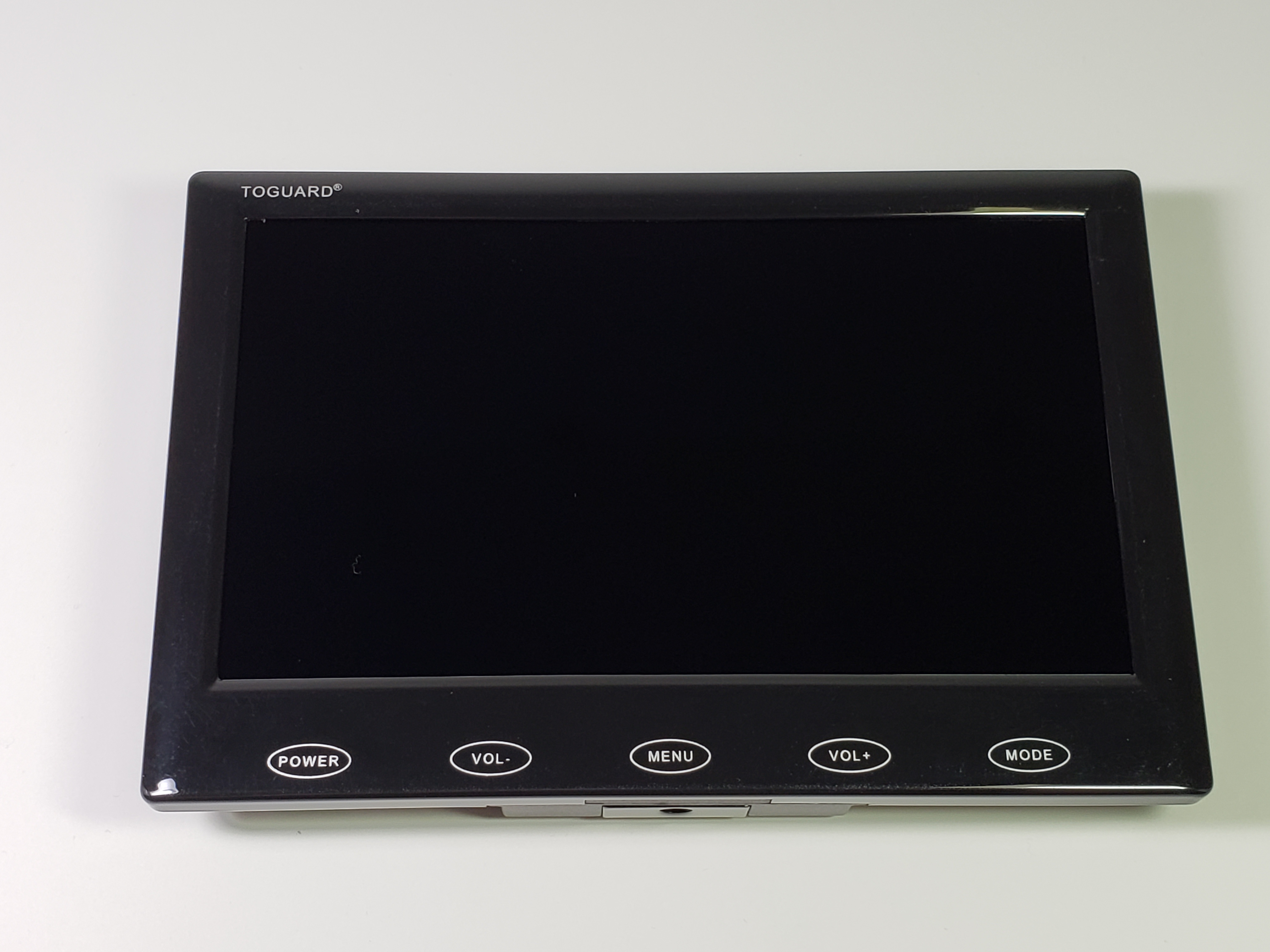

Monitor
The screen used by the Jetson
|
|

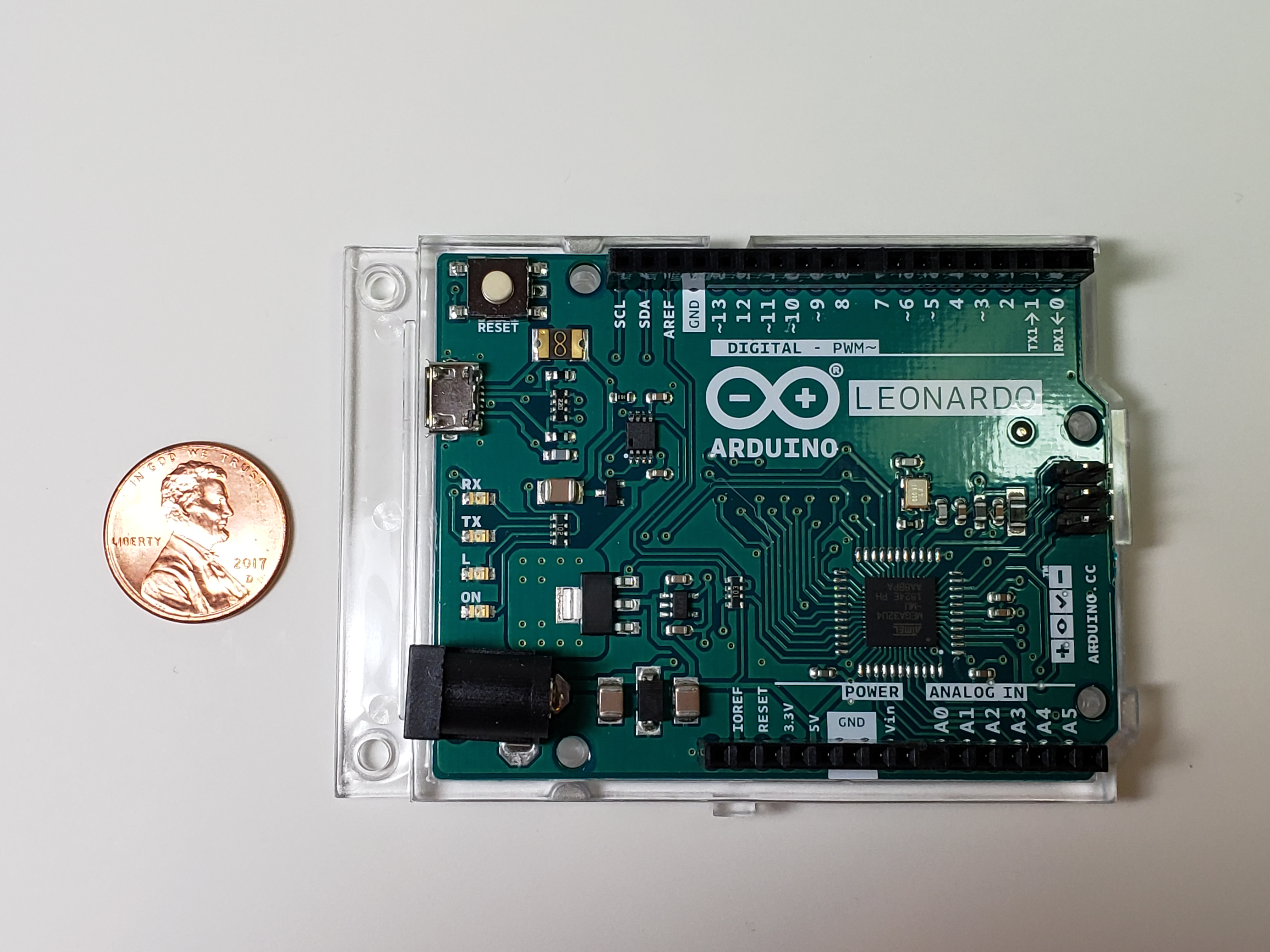

Arduino
A microcontroller for controlling hardware
|
|

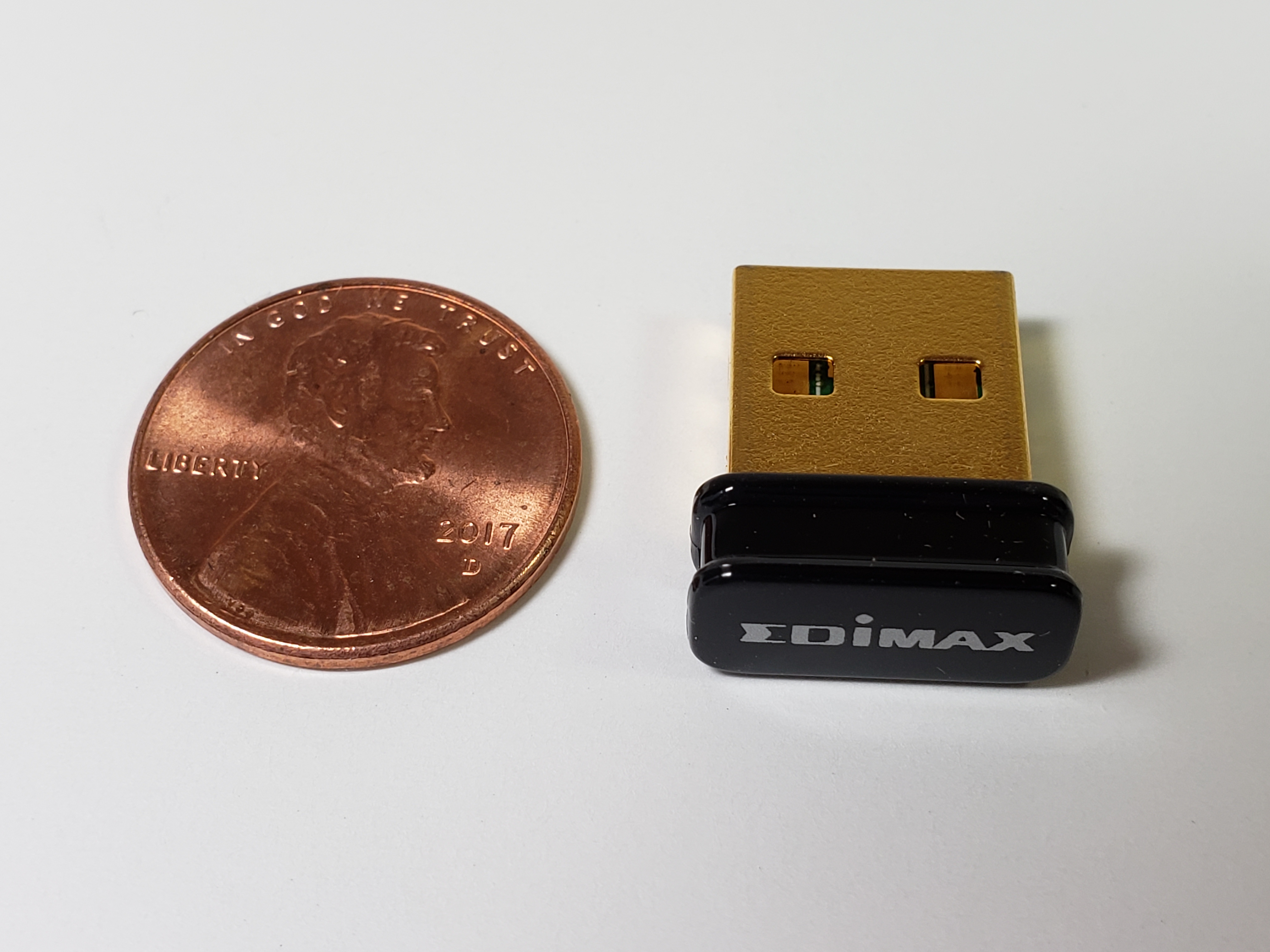

Wi-Fi adaptor
Allows the Jetson to connect to Wi-Fi
|
|

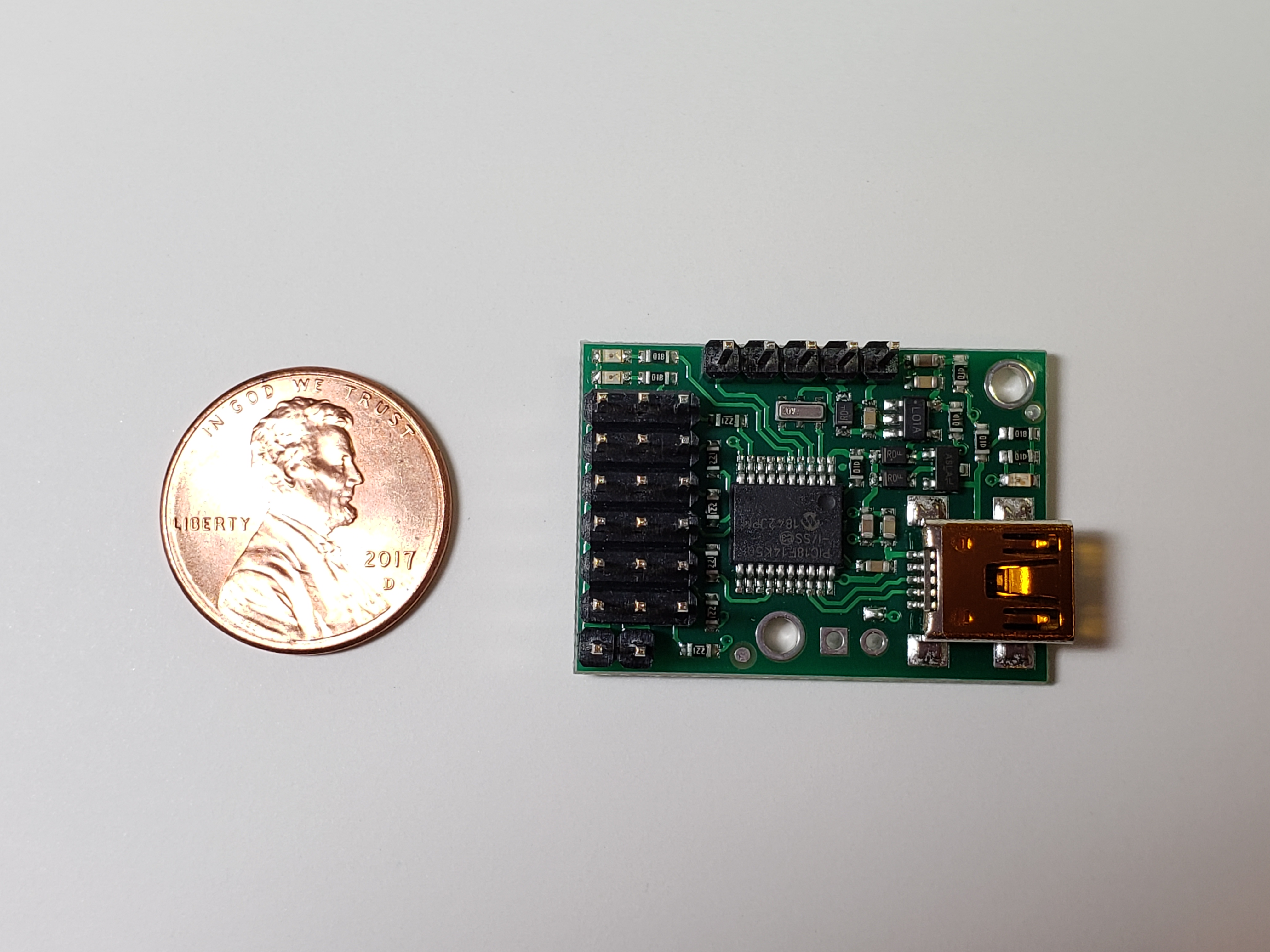

PWM controller
Controls driving and steering
|
|

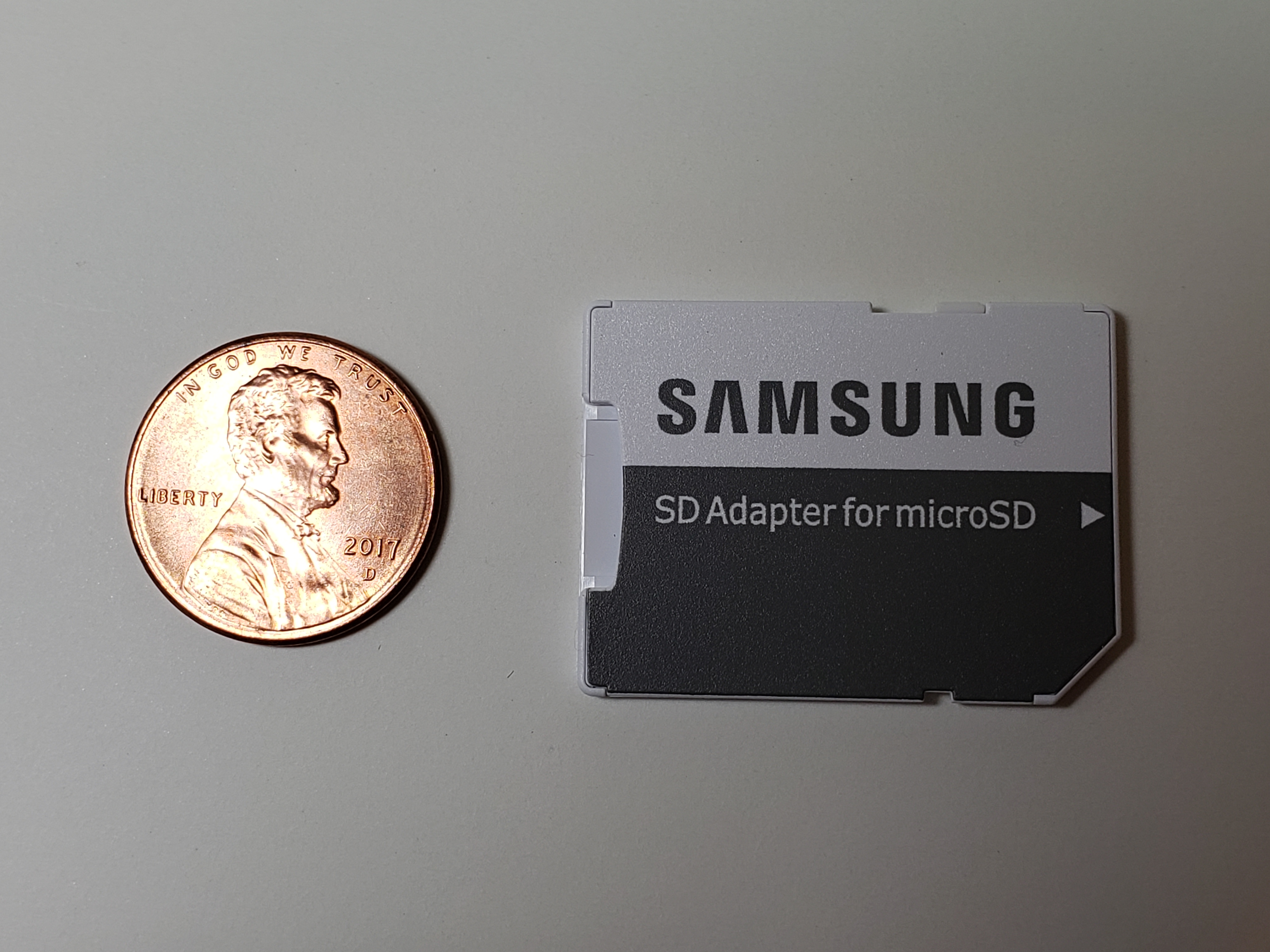

SD card adaptor
Turns the Micro SD card into full sized
|
|

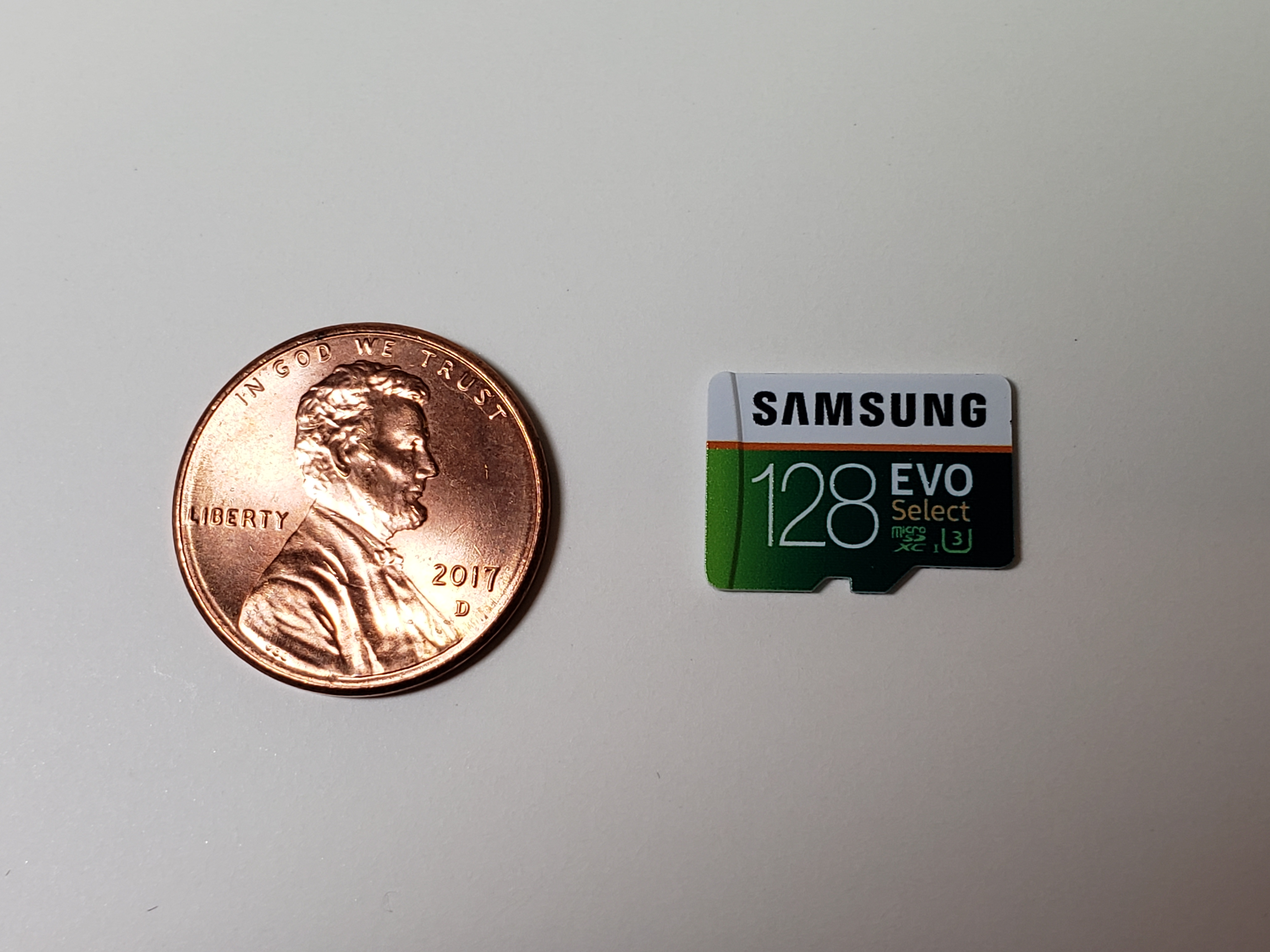

Micro SD card
Stores all data on the Jetson
|
|

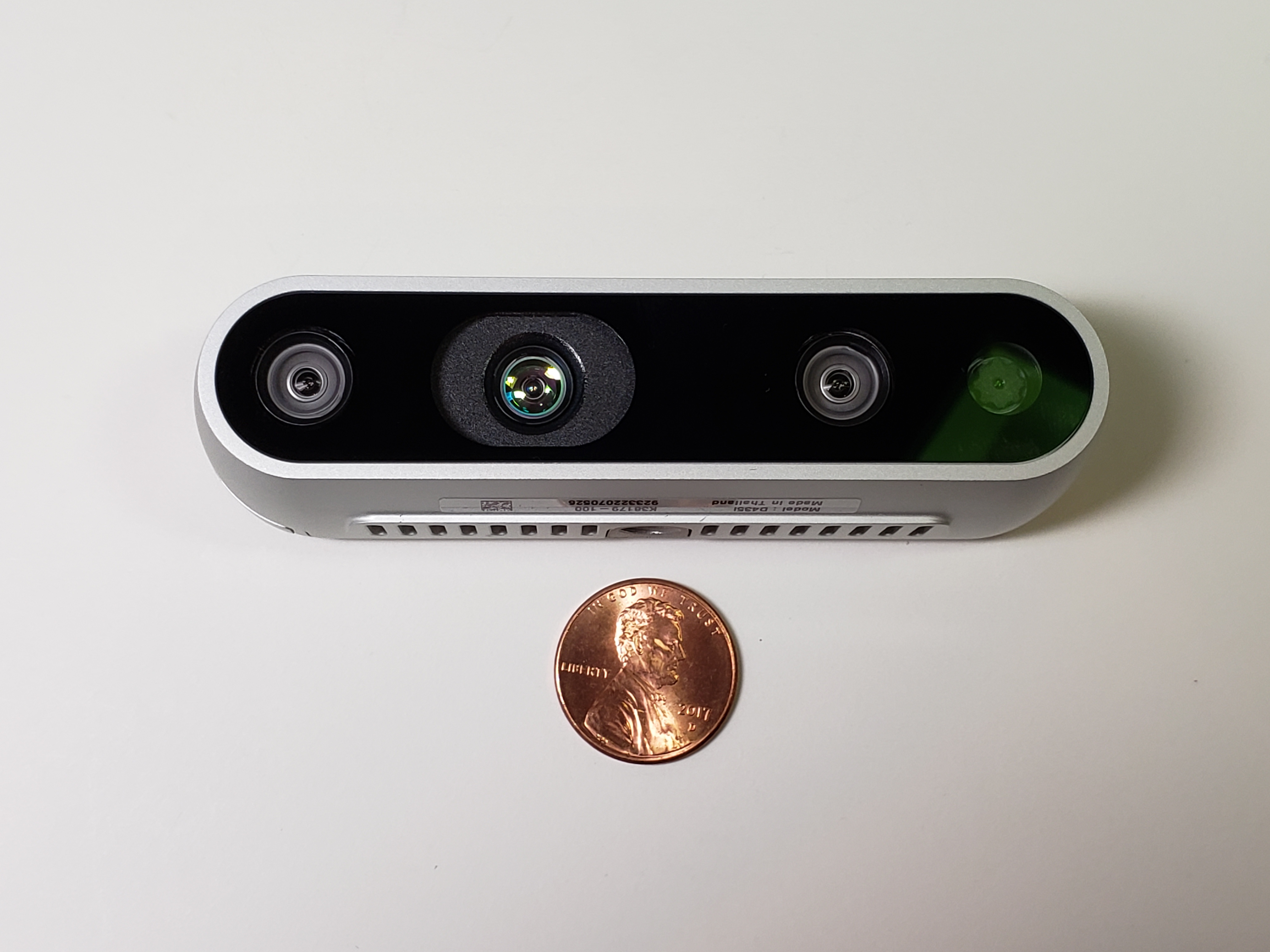

Camera
Captures color and depth video
|
|

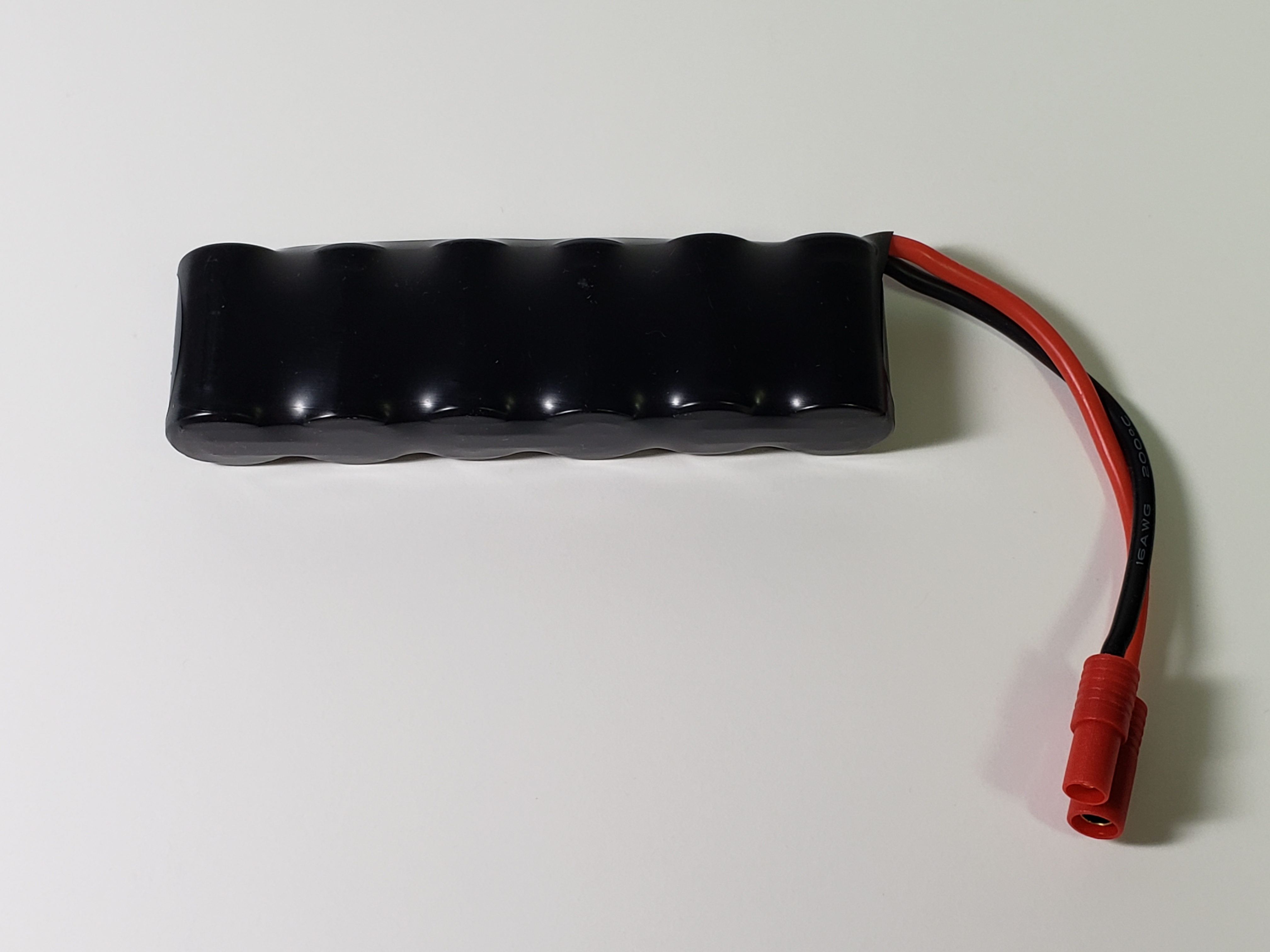

Car battery
Powers the motors for driving and steering
|
|

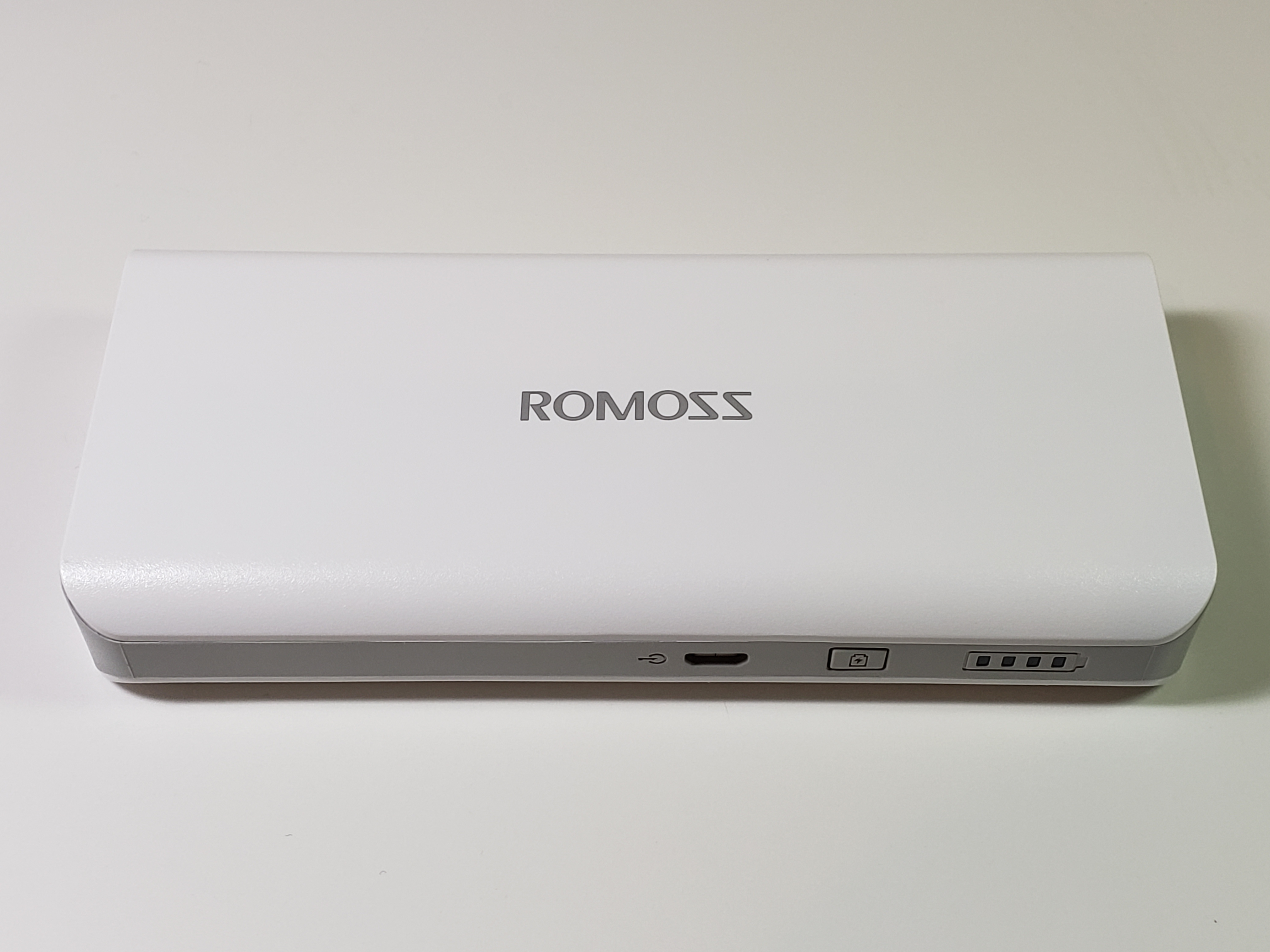

Battery
Powers electronics (except the car)
|
Cables¶
|

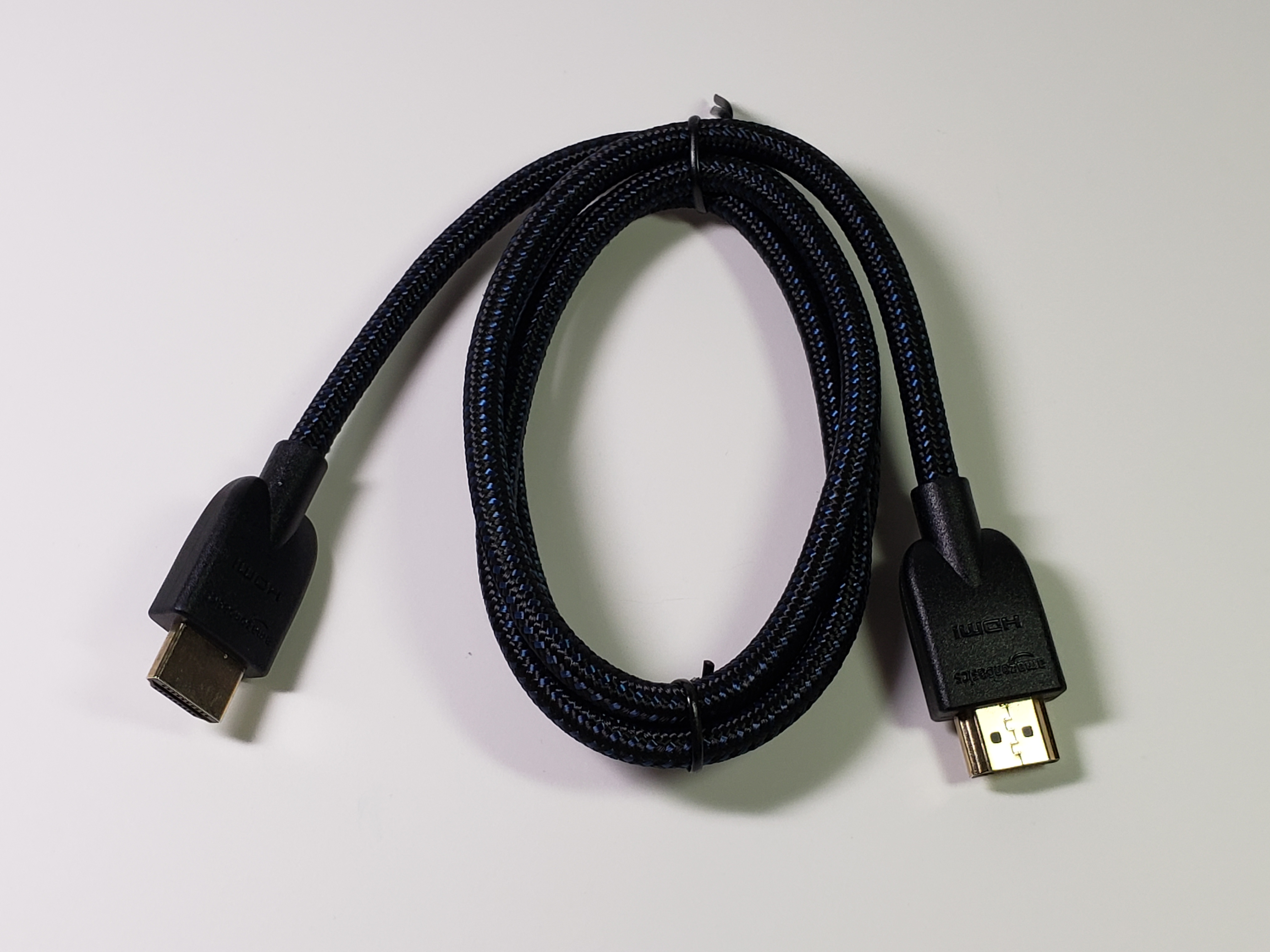

HDMI cable
Connects the Monitor to the Jetson
|
|

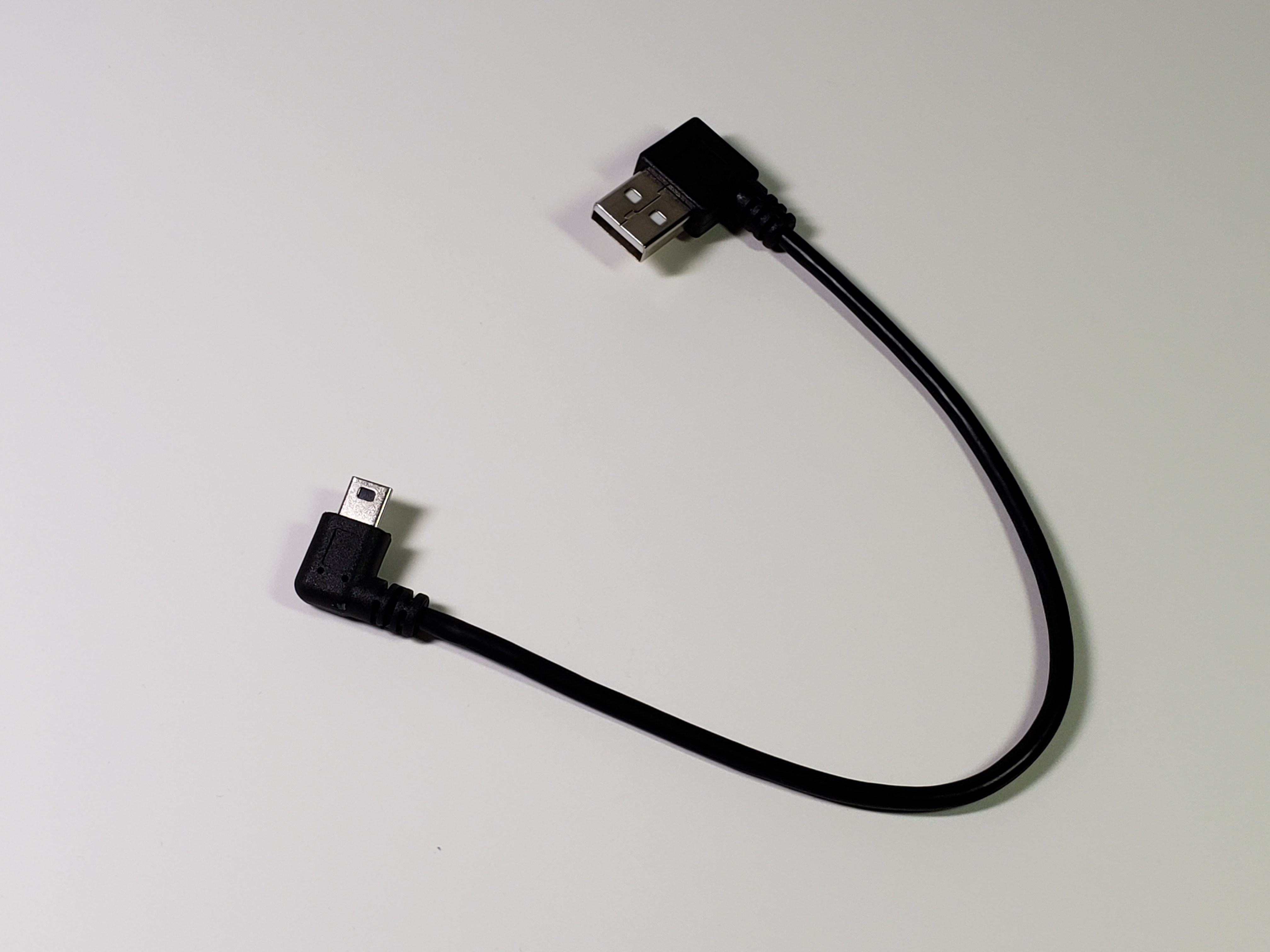

Mini to full USB cable
Connects the PWM to the Jetson
|
|

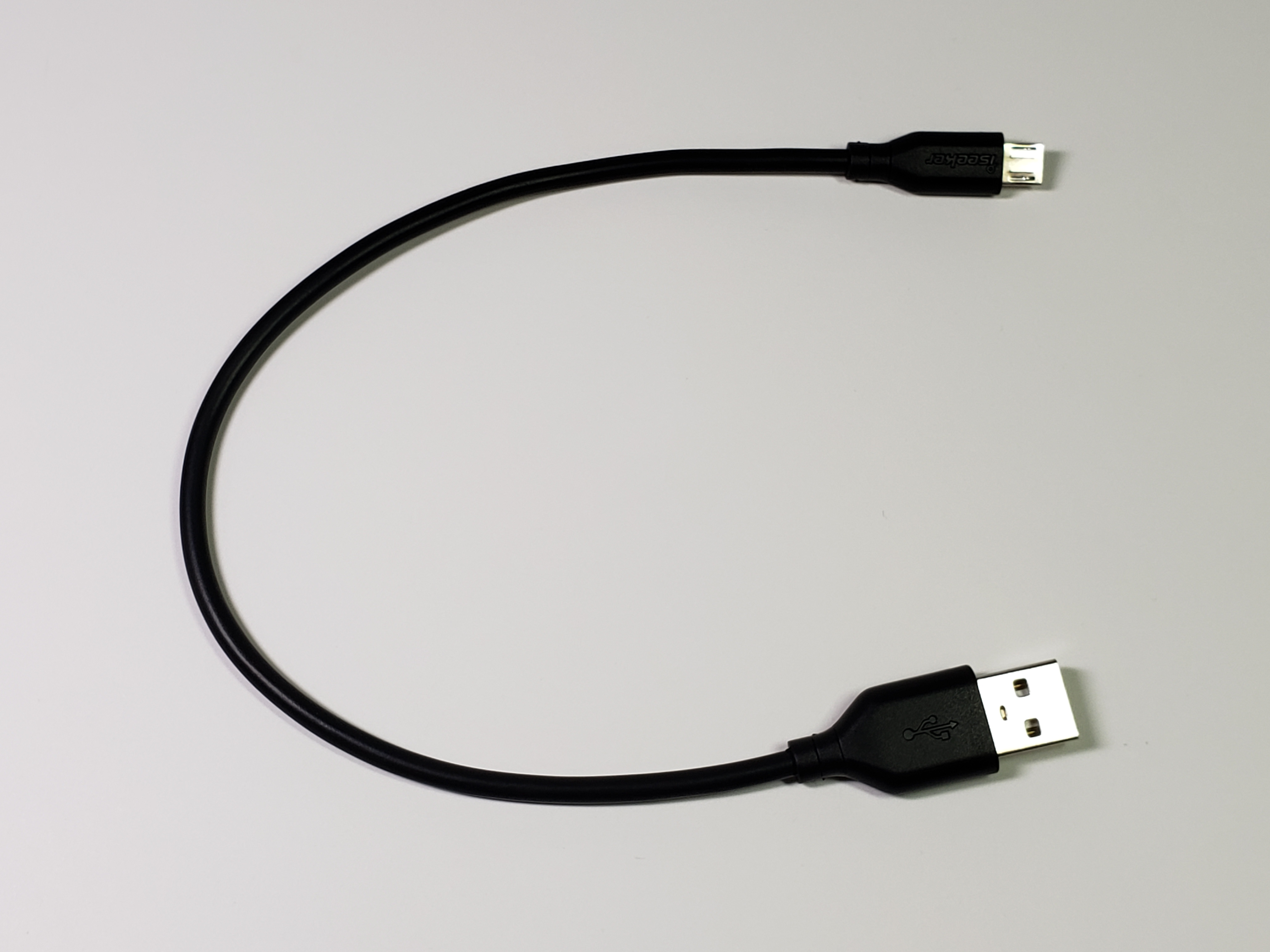

USB data cable
Connects the LIDAR to the Jetson
|
|

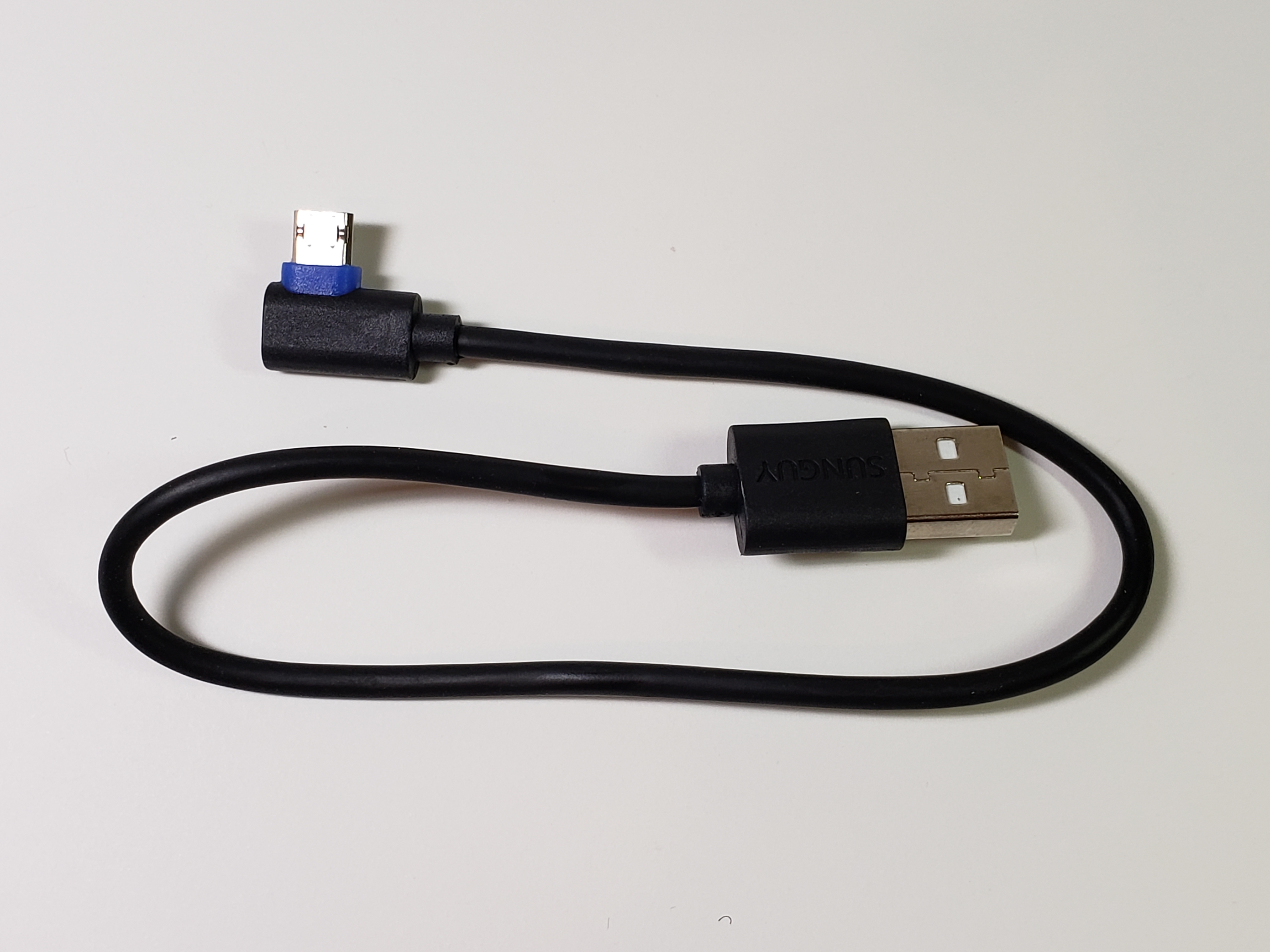

USB power cable
Powers the Jetson and the PWM
|
Hardware¶
|

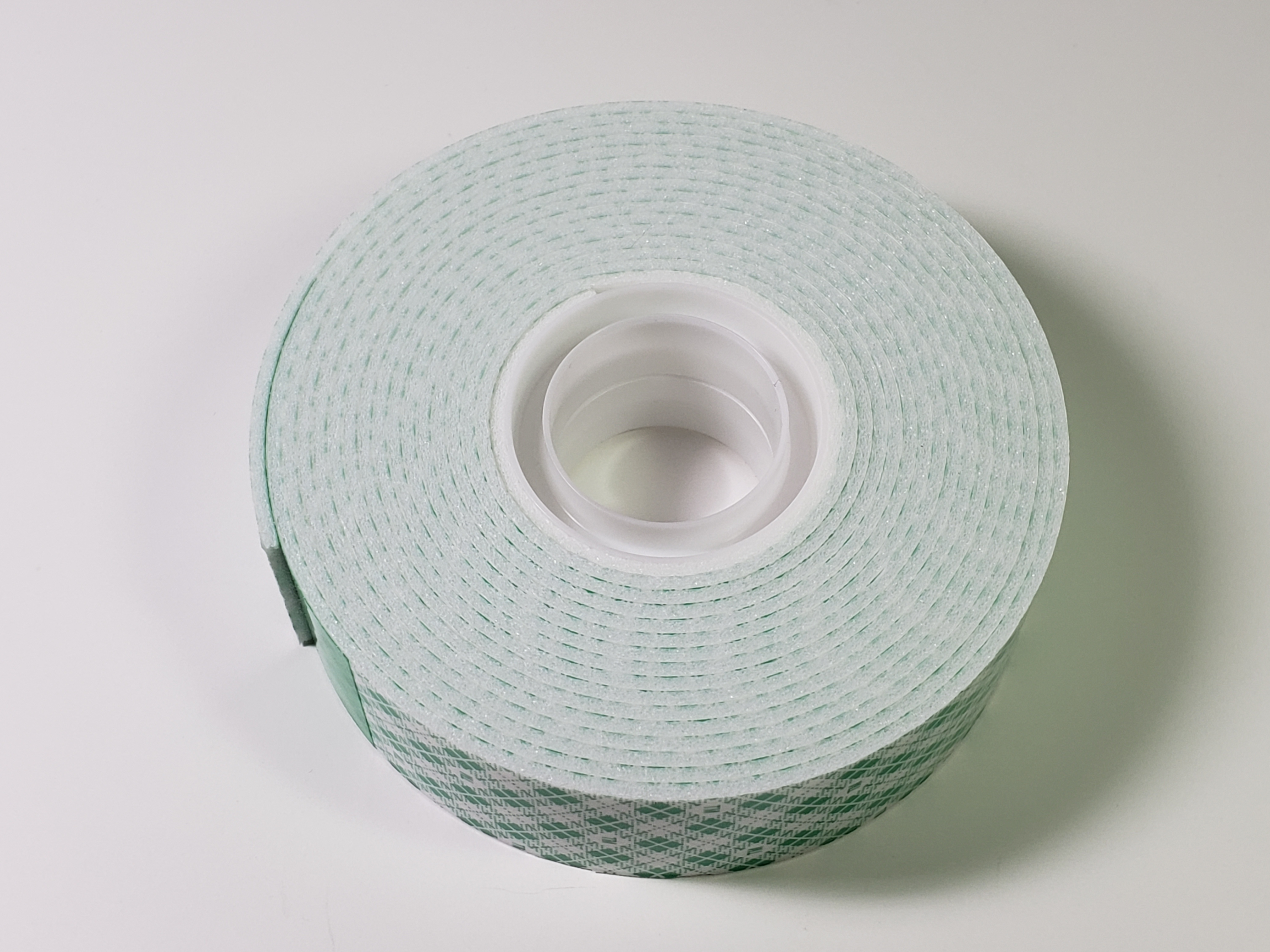

Foam tape
Secures the USB hubs and Speaker
|
|

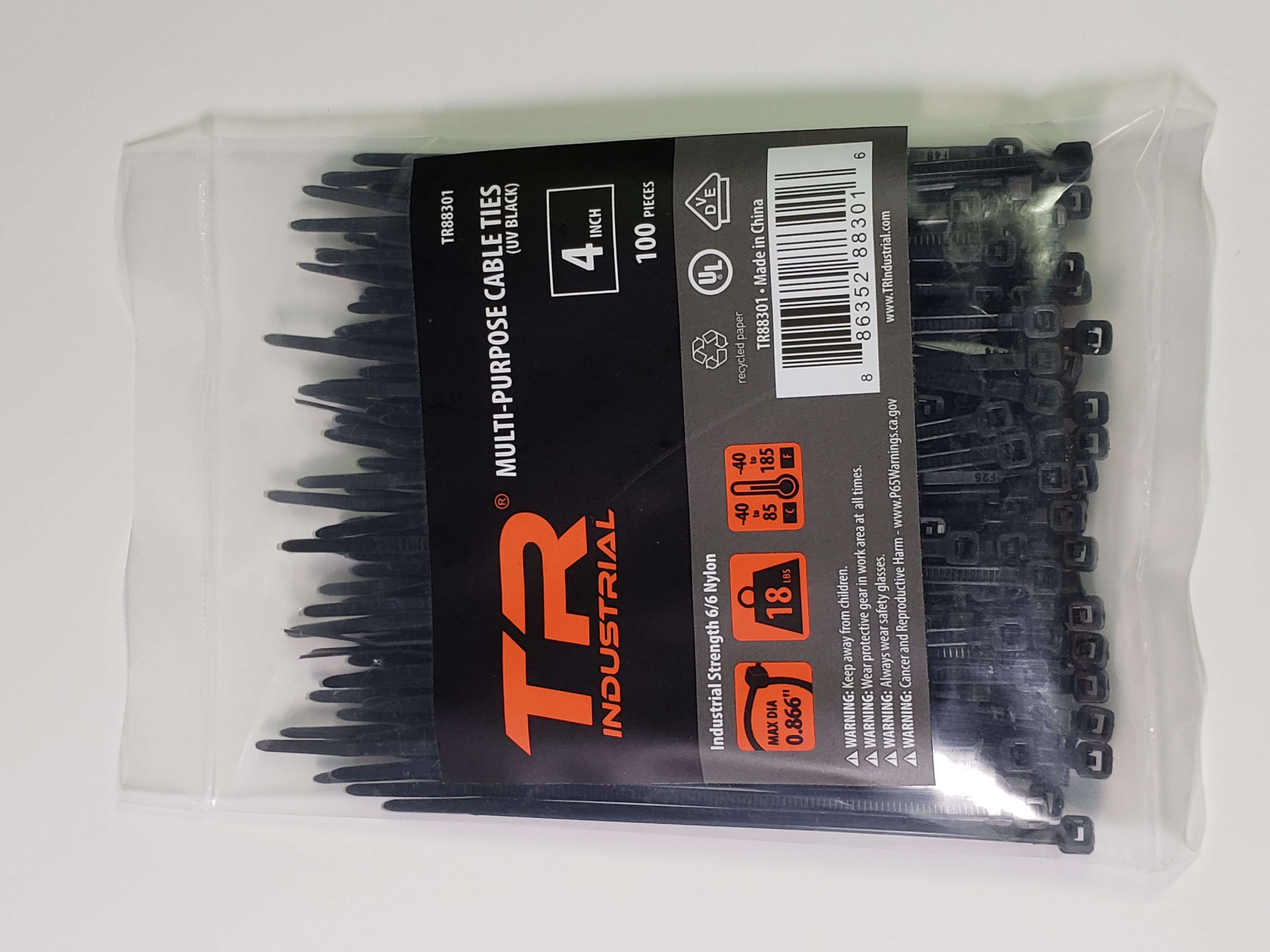

Zip ties
Secures cables
|
|
Speaker
Produces sound
|
|

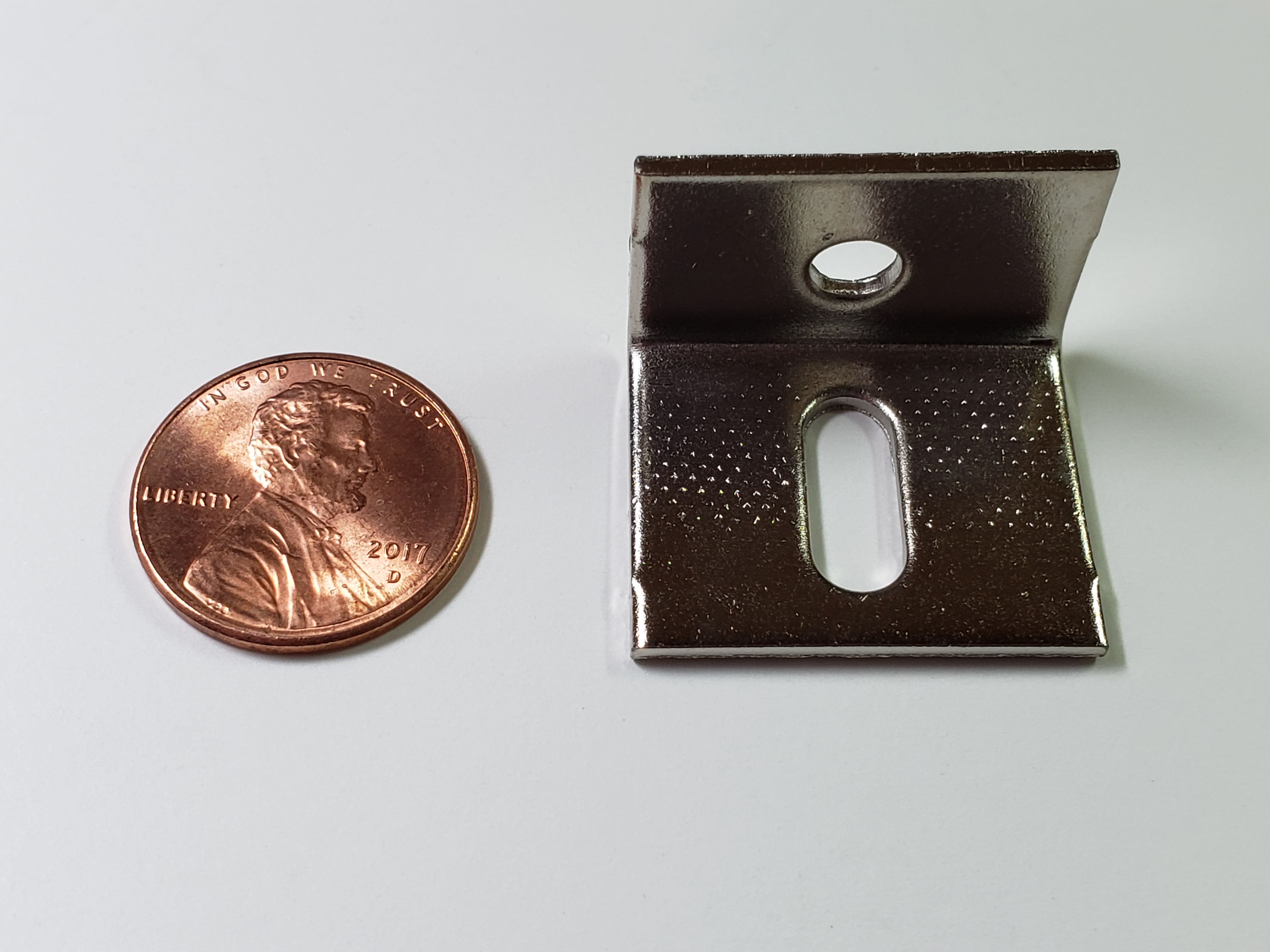

Corner bracket
Secures the Monitor
|
|

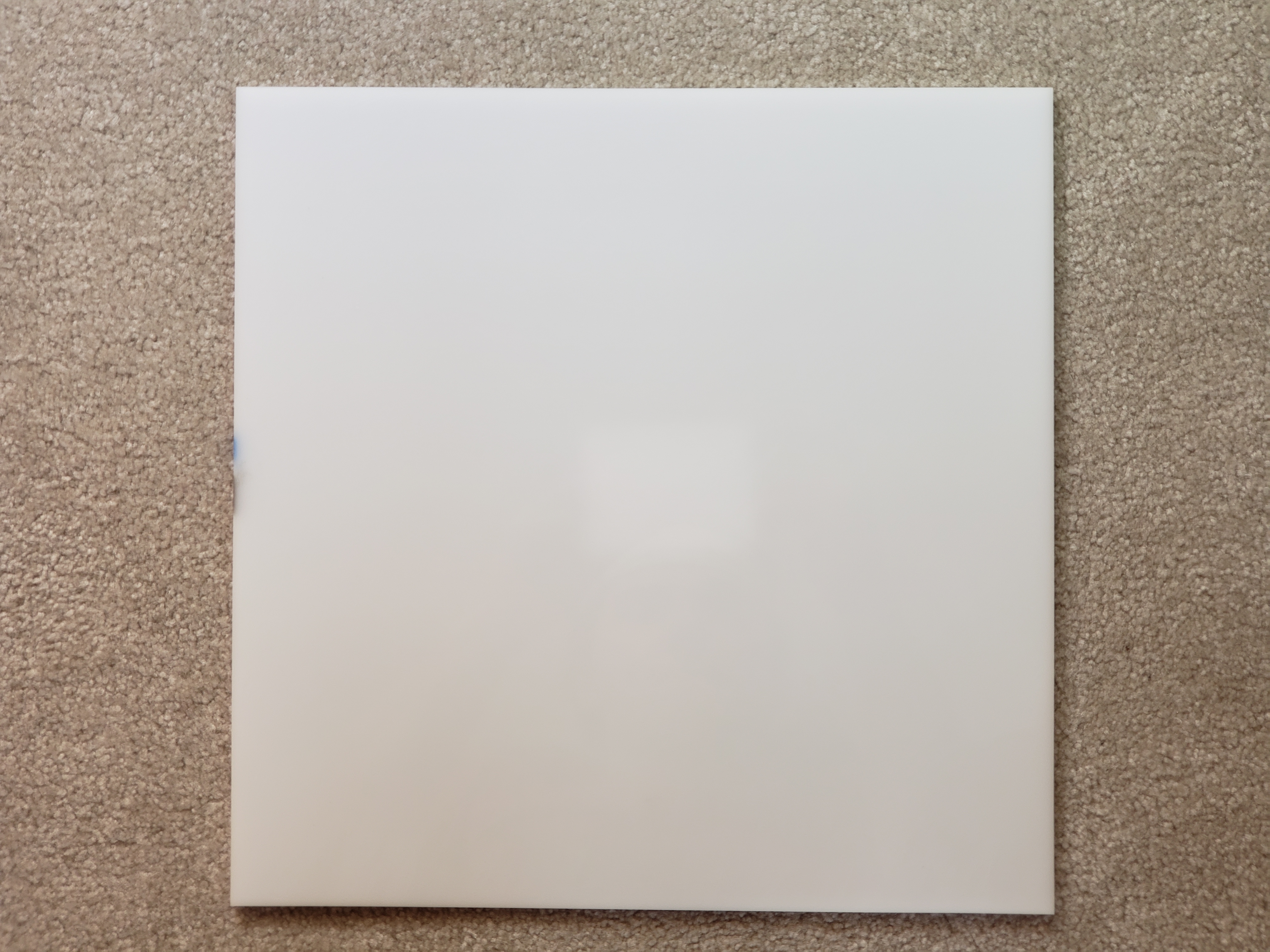

Acrylic
Material used for frames
|
|

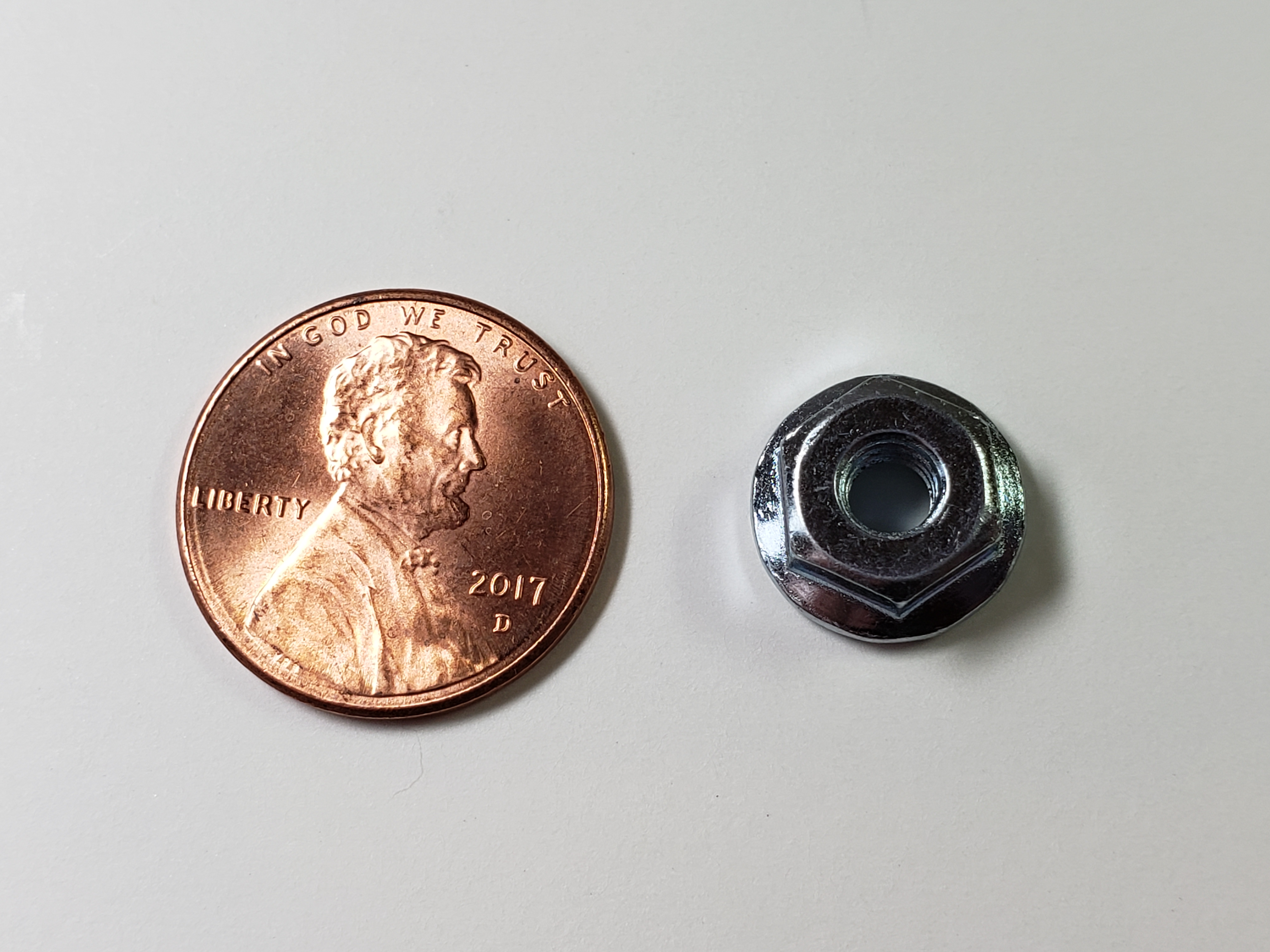

Locknut
Secures the Monitor
|
|

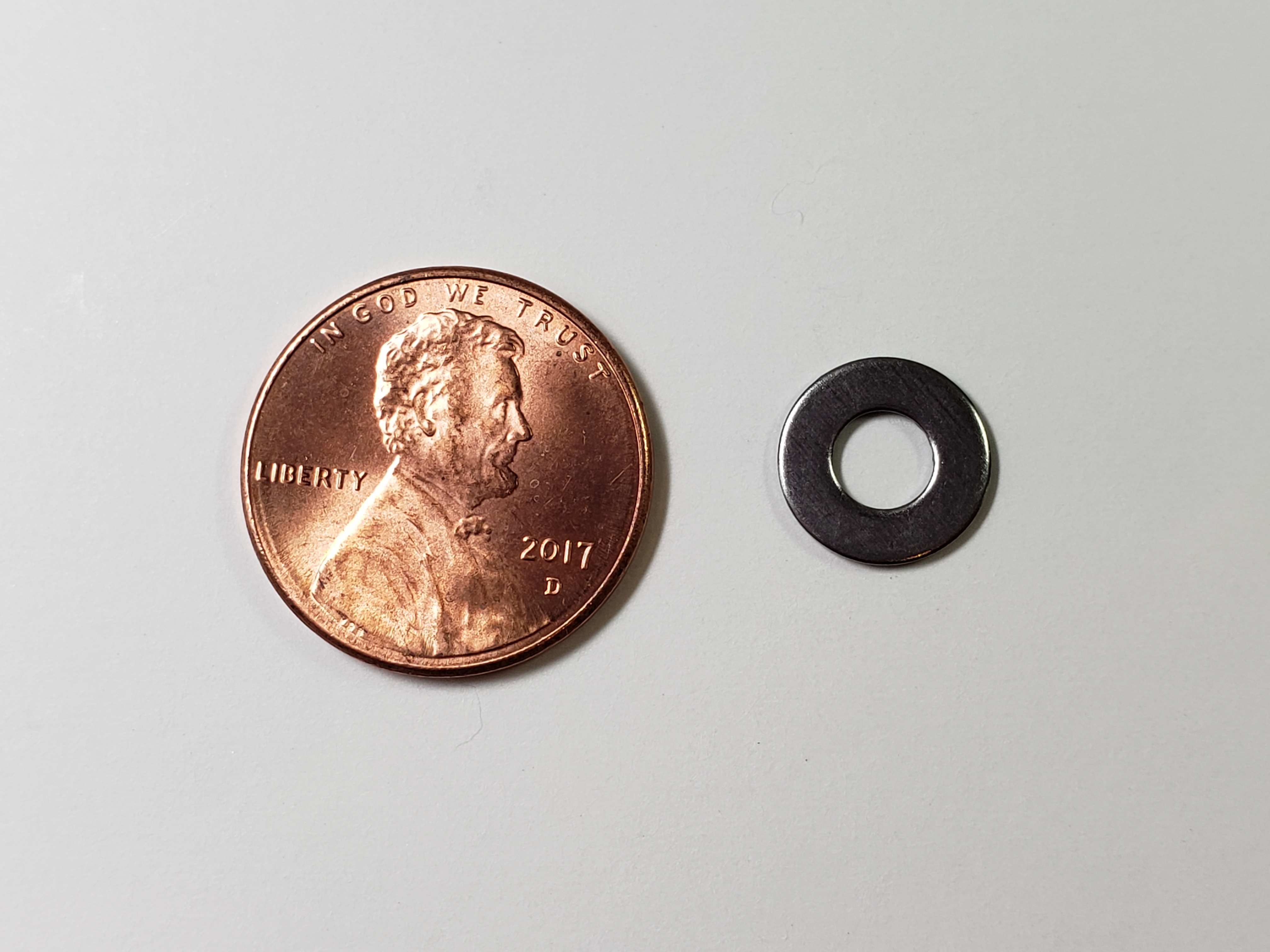

Washer
Distributes stress on key screw connections
|
Screws¶

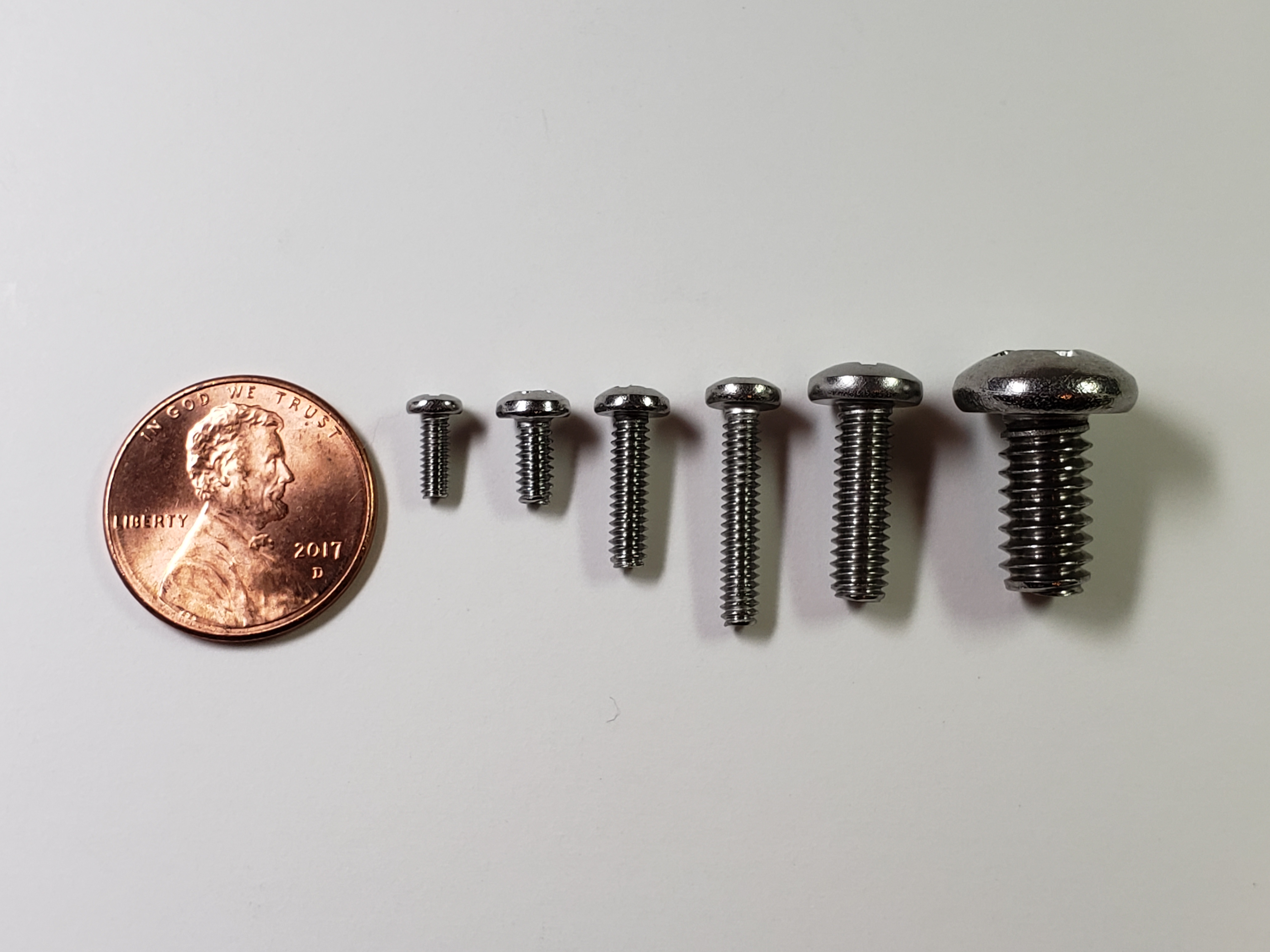

Screws from left to right:
(F) 2-56 1/4 screw: Attaches PWM to frame
(E) 4-40 1/4 screw: Attaches Jetson and LIDAR PCB to frame
(D) 4-40 7/16 screw: Battery compartment
(C) 4-40 5/8 screw: Battery compartment
(B) 8-32 9/16 screw: Attaches the upper and lower layers of the frame
(A) 1/4-20 1/4 screw: Attaches Camera to frame
Metric screws (photo to come):
(G) M2.5x0.45 12mm screw: Attaches LIDAR to frame
(H) M6x1 8mm screw: Attaches Monitor to frame
Standoffs¶

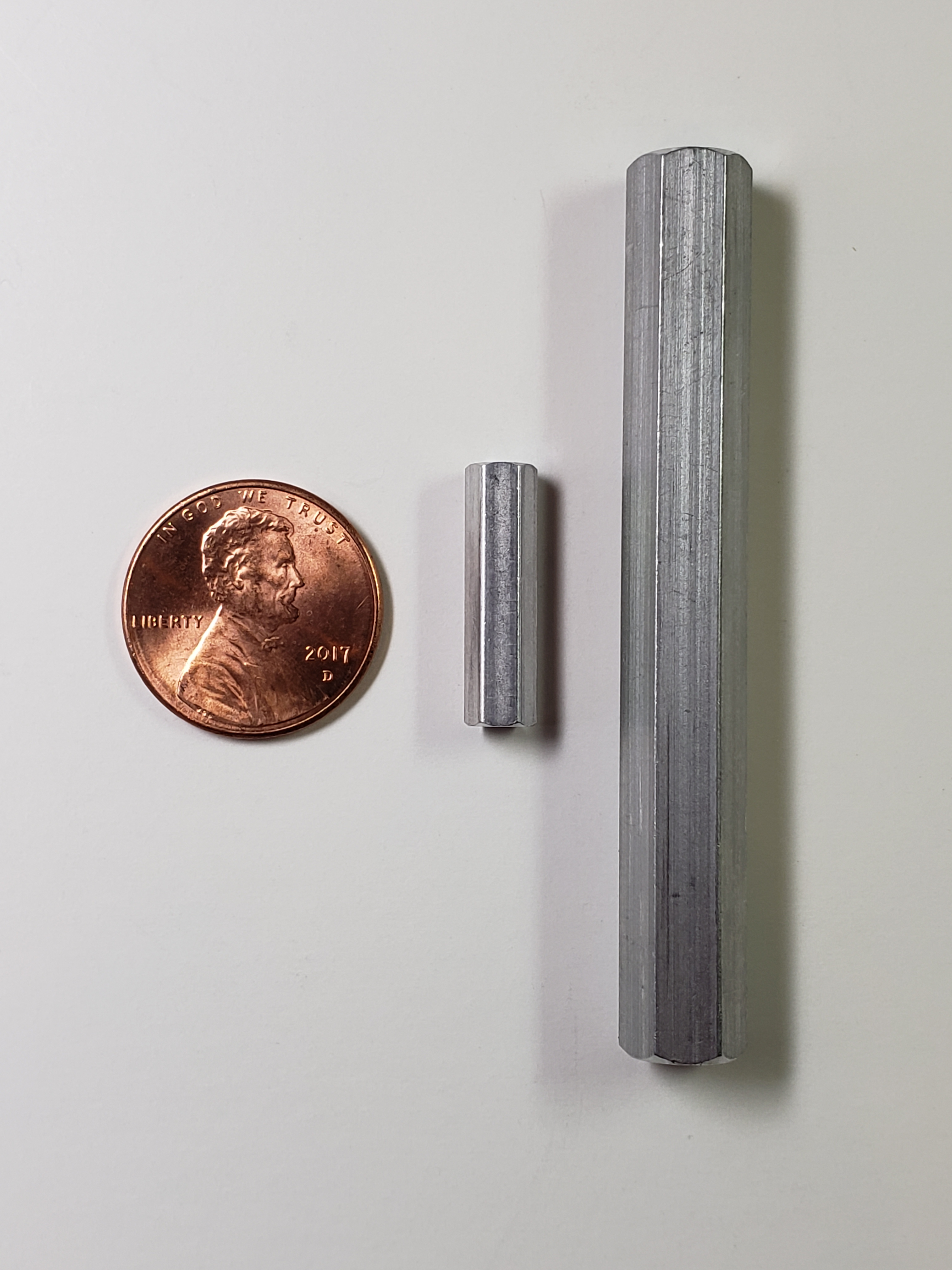

Female-Female standoffs from left to right:
FF 8-32 standoff: Separates the upper and lower layers of the frame
FF 4-40 standoff: Battery compartment

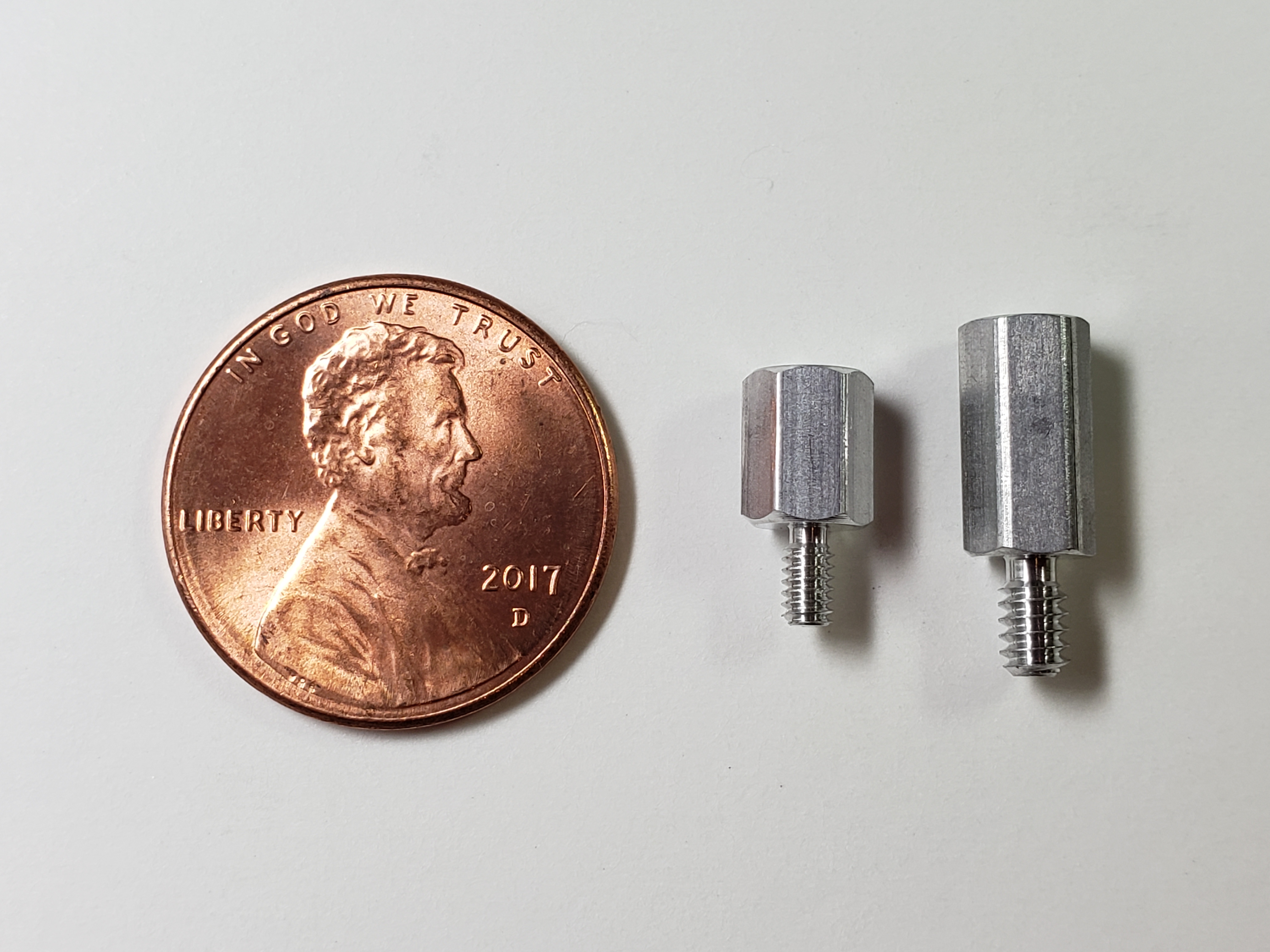

Male-Female standoffs from left to right:
MF 2-56 standoff: Attaches PWM to frame
MF 4-40 standoff: Attaches Jetson and LIDAR PCB to frame
Laser Cut Parts¶
|

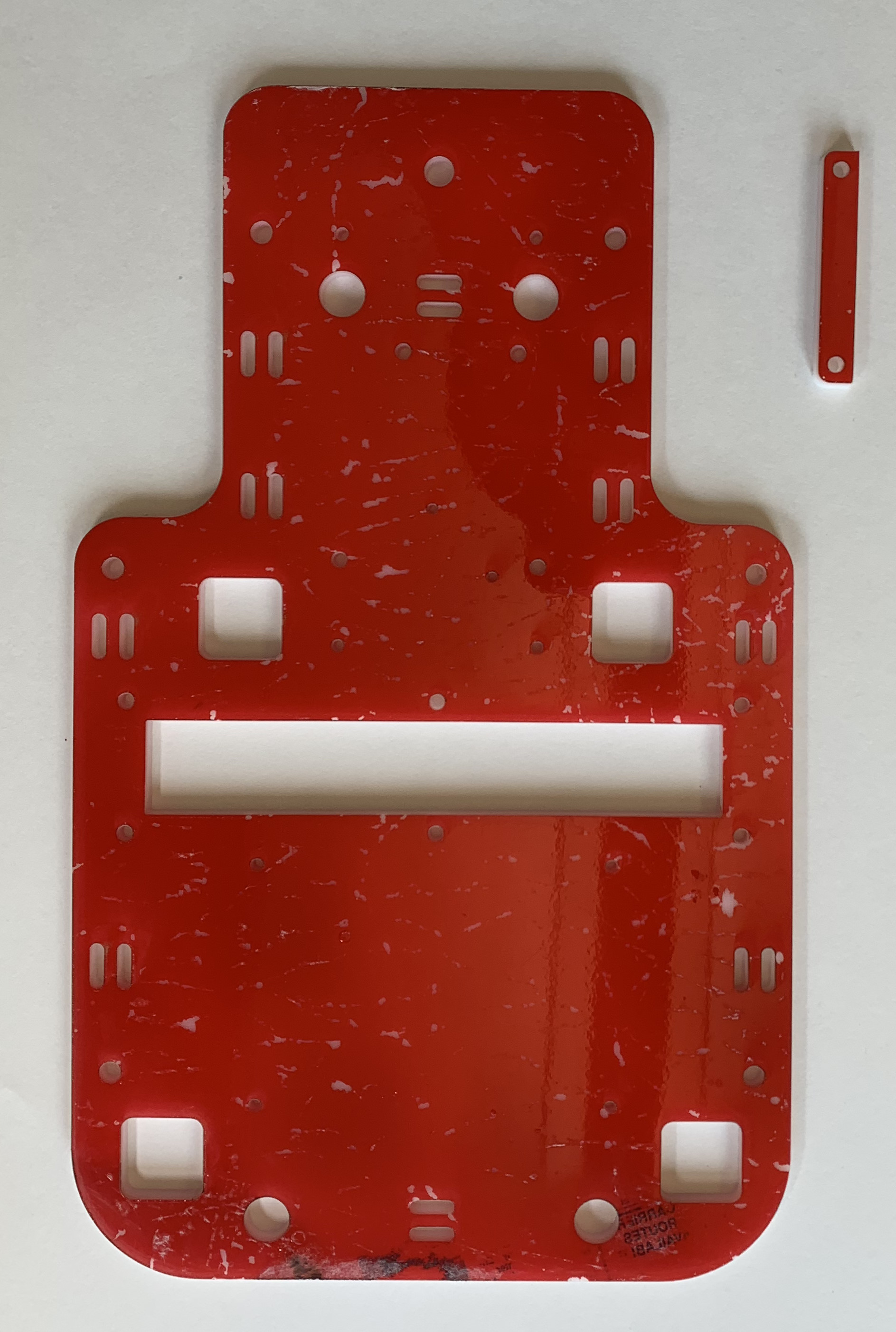

Main base plate for the car. |
|

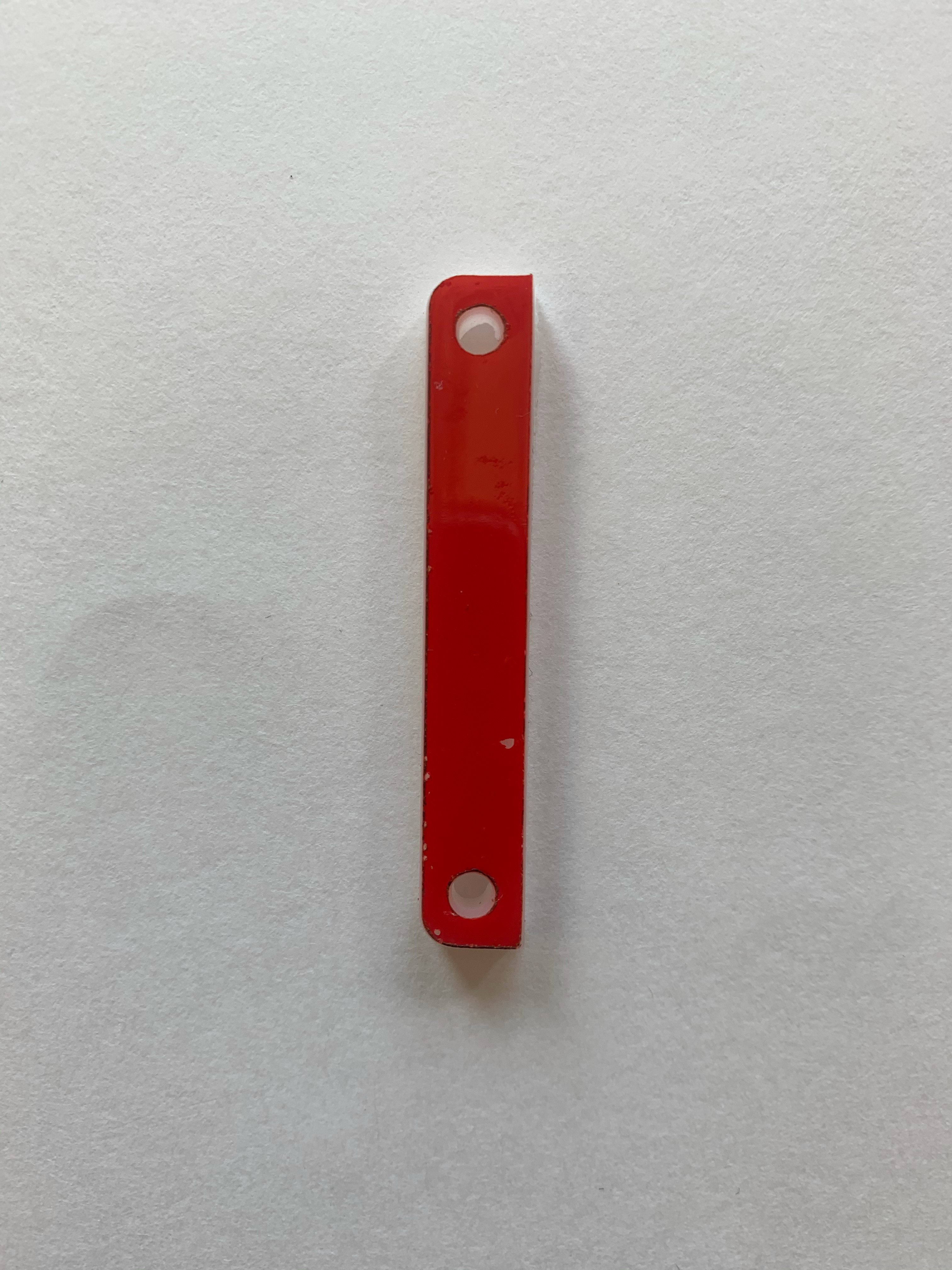

Secures the camera in place. |
|

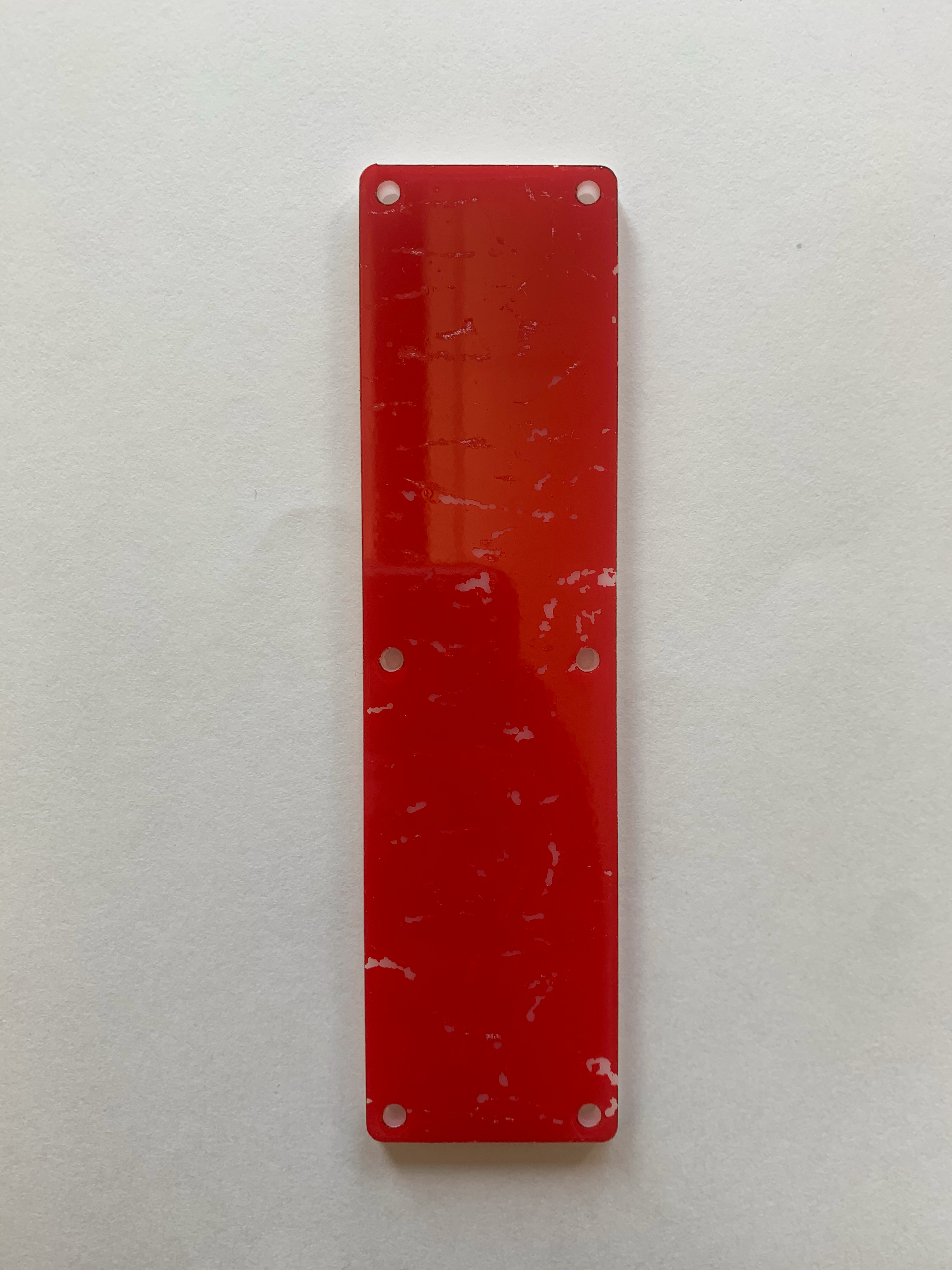

Holds up the battery. |
|

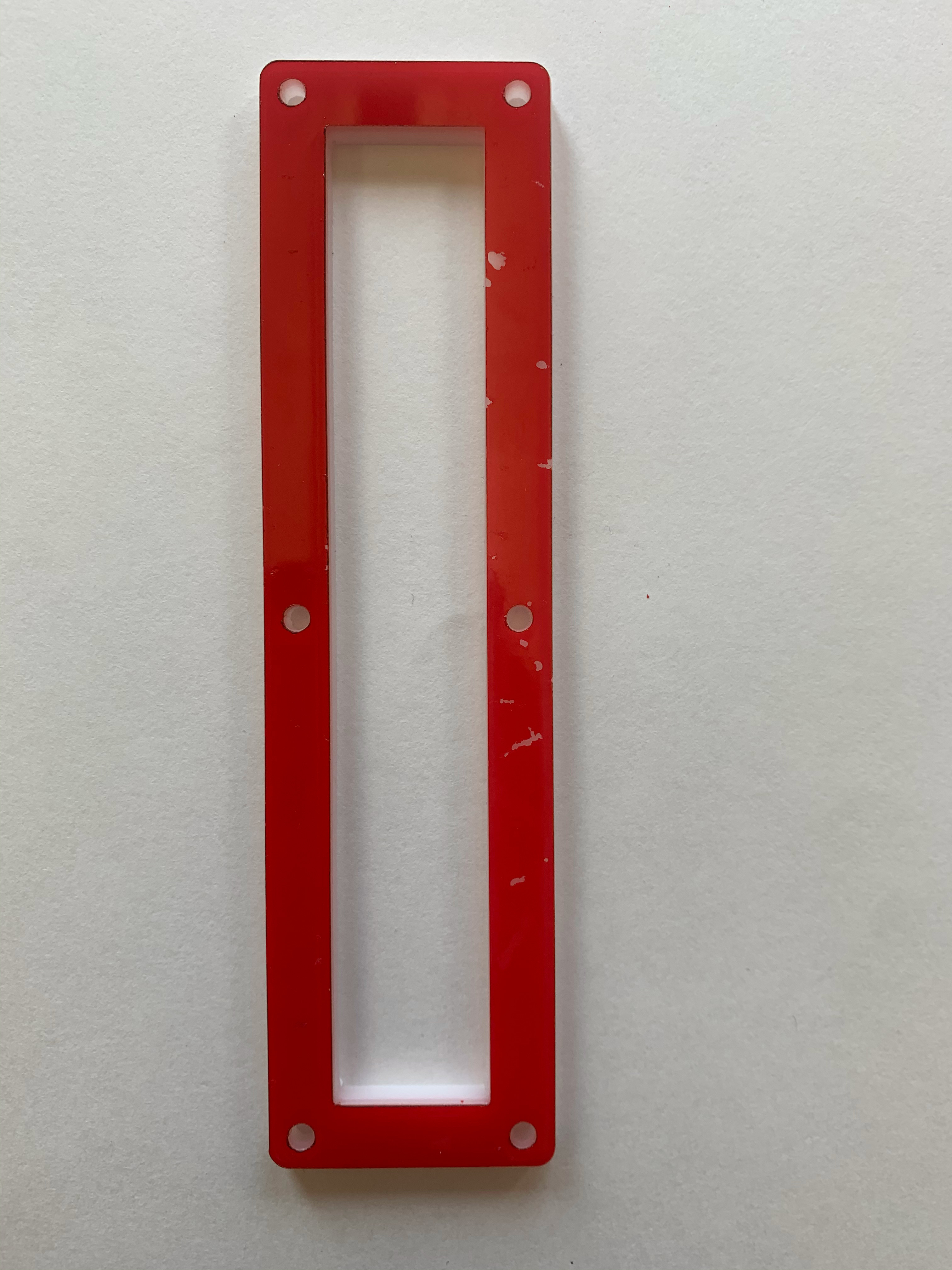

Prevents the battery from sliding out. |
|

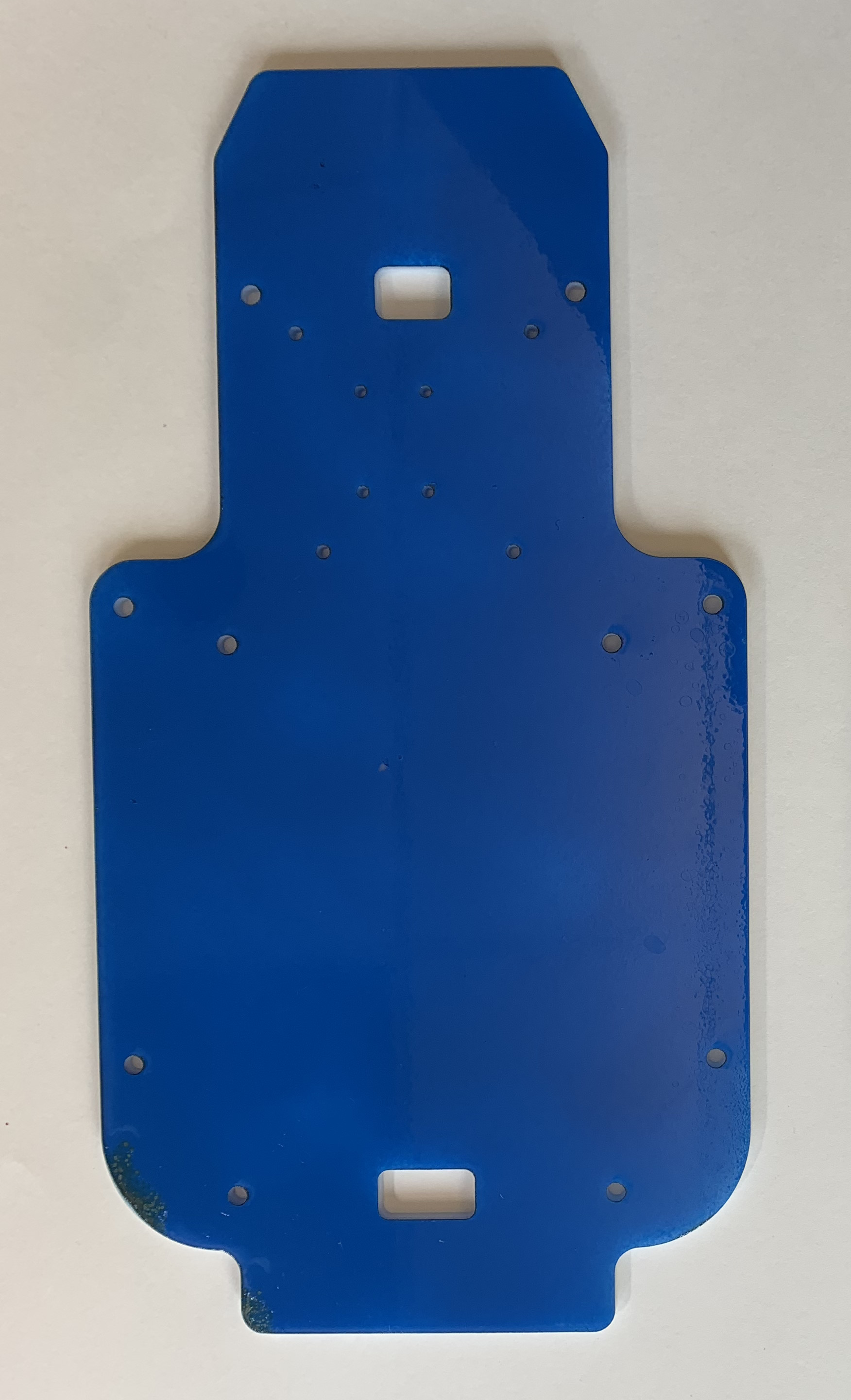

Main top plate for the car. |
|

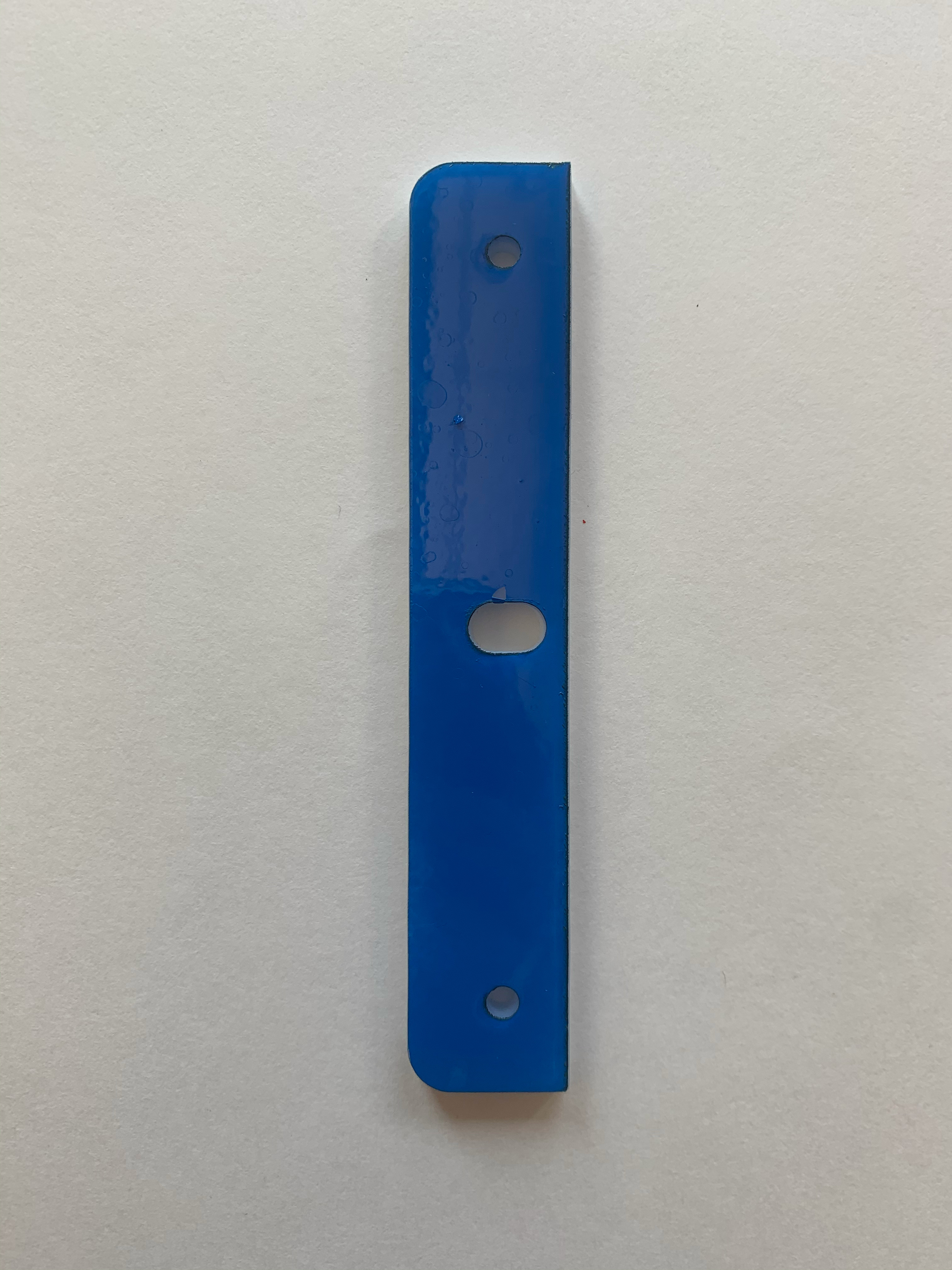

Holds the monitor in place. |
